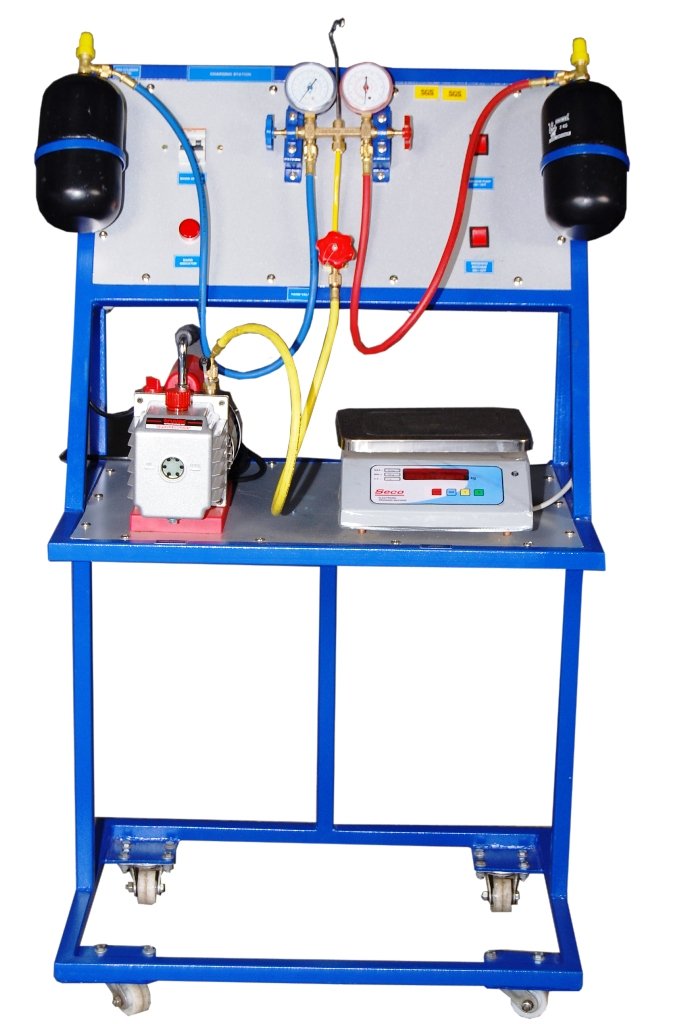

Vacuum and Recharge Station Model RAC 067

- The unit should allow for the filling and draining operations of the refrigerating fluid. - The Refrigeration Plant Vacuum and Recharging Station should be composed of - Portable recharge station with trolley-mounted frame, fitted with two-stage pump for high vacuum, graduated charging cylinder. - The two-stage pump used is fitted with a ballast valve and anti-air return valve; flow rate: 4 m3/h; residual pressure: 0.02 mbar; 500 x 200 x 660 (h) mm - Ratchet wrench - Adjustable wrench max. opening 30 mm - Cylinder connector - Multi-gas electronic leak detector - The equipment set for electricians and technicians for refrigeration plants maintenance should be composed of: - Three-bin tool box - Set of 13 double ended open jaw wrenches (mm) - Set of 13 double ended open jaw wrenches (inches) - Set 1 tube cutter and 1 flaring tool - Adjustable wrench 19 mm - Set of 6 screwdrivers for slot-head screws - Set of 4 screwdrivers for "Phillips" screws - Plastic hammer - Flat-nose pliers with insulated handles 160 mm - Half-round file, 8" second cut - Round file, 8" second cut - Poligrip pliers 190 mm - Flat- file, 8" second cut - Digital electronic thermometer with surface probe; measuring range: - 50 + 199.9 °c; resolution: 0.1°C - Set of copper pipes composed of: - 5 m pipe 6x4 mm - 5 m pipe 8x6 mm - 5 m pipe 10x8 mm - 5 m pipe 12x10 mm
