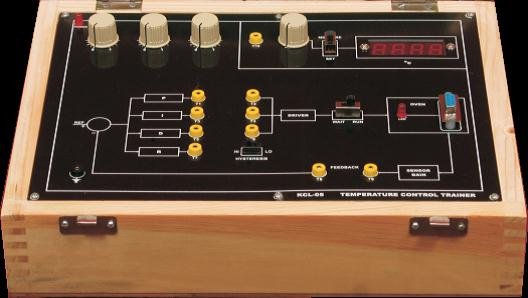

Temperature Controller Trainer Model PCT 057
– Temperature controller with facilities for P, I D and relay control blocks.
– Operating temperature: Ambient to 90 C.
– Separate controls for P, I, D channel gains.
Experiments
– Identification of the oven parameters.
– Study of ON-OFF temperature control (with adjustable relay characteristics).
– Study of P, PI, PD and PID controls having adjustable coefficients.
- Two settings for relay hysteresis.
- Fast 25W oven fitted with IC temperature sensor.
- Digital display of set and measured temperature on 3 ½ digit built-in DVM.
- Buttered output for recorder.
- IC regulation in controlled circuit power supplies.
- Supporting literature and patch cords included.
