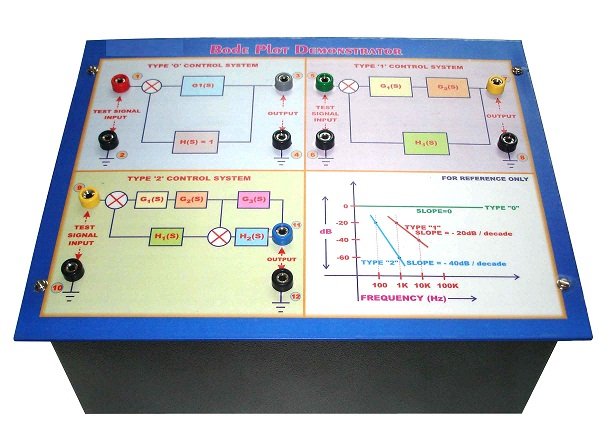

Stability Analysis of Linear Systems: Bode – Plot Demonstrator Model PCT 050
- Completely self contained stand – alone unit
- Designed for educational & experimenting purposes
- Demonstrates the principle and working of various control systems (Type 0, Type 1 & Type 2) for bode plot characteristics
- Study of frequency response, gain calculation, transfer function, logarithmic plot consisting of two graphs viz, logarithmic of magnitude and phase angle (combined plots are called as Bode plot) for various control systems (Type 0,1, 2)
- Built - in IC based DC regulated power supply with short circuit protection and indication for supply “ON”
- Multi - coloured test points are provided at various stages to observe the voltage and waveform
- Set of necessary patch cords
- Housed in an elegant cabinet with a well spread intelligently designed multi-coloured layout on the front panel
- Strongly supported by a comprehensive instruction manual complete with theory and operating details
- Supply required 230V, 50Hz AC
