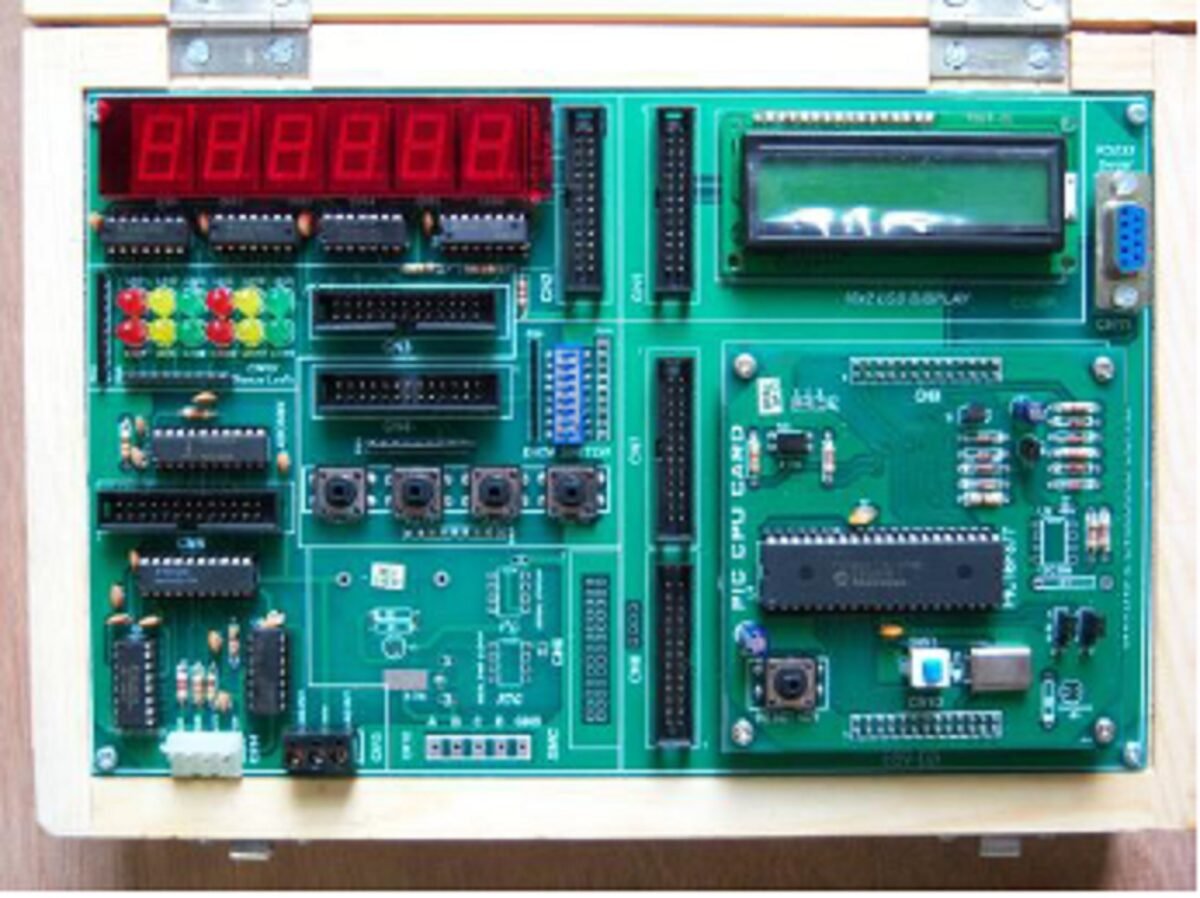

PIC EMBEDDED TRAINER KIT Model MIC 005C
MIC 005C is a single board Universal Embedded Kit based on PIC (Microchip 16F877A /18F452) Microcontroller for any Embedded applications.
– CPU: Microchip 16F877A / 18F452 Microcontroller
– ISP Programming facility
- 8 LEDs to display Digital Output
- 8 Switches to give Digital Input each indicated by LED
- 16*2 Alphanumeric LCD
- 4 digit Seven segment displays
- I2C compatible
o 24C512 EEPROM (64KB)
o DS1307 RTC with suitable battery
o 4 Ch. 8bit ADC & 8 bit DAC using PCF8591
- Temperature sensor interface Lm35
- Temperature sensor interface DS18B20
- 24 I/O Lines Provided on a 26 pin FRC
- Connector for external interface
- On board supply +/- 12V, 5V is provided
- Supply Input Voltage: 230V AC
- User's Manual with sample programs for all on board features
