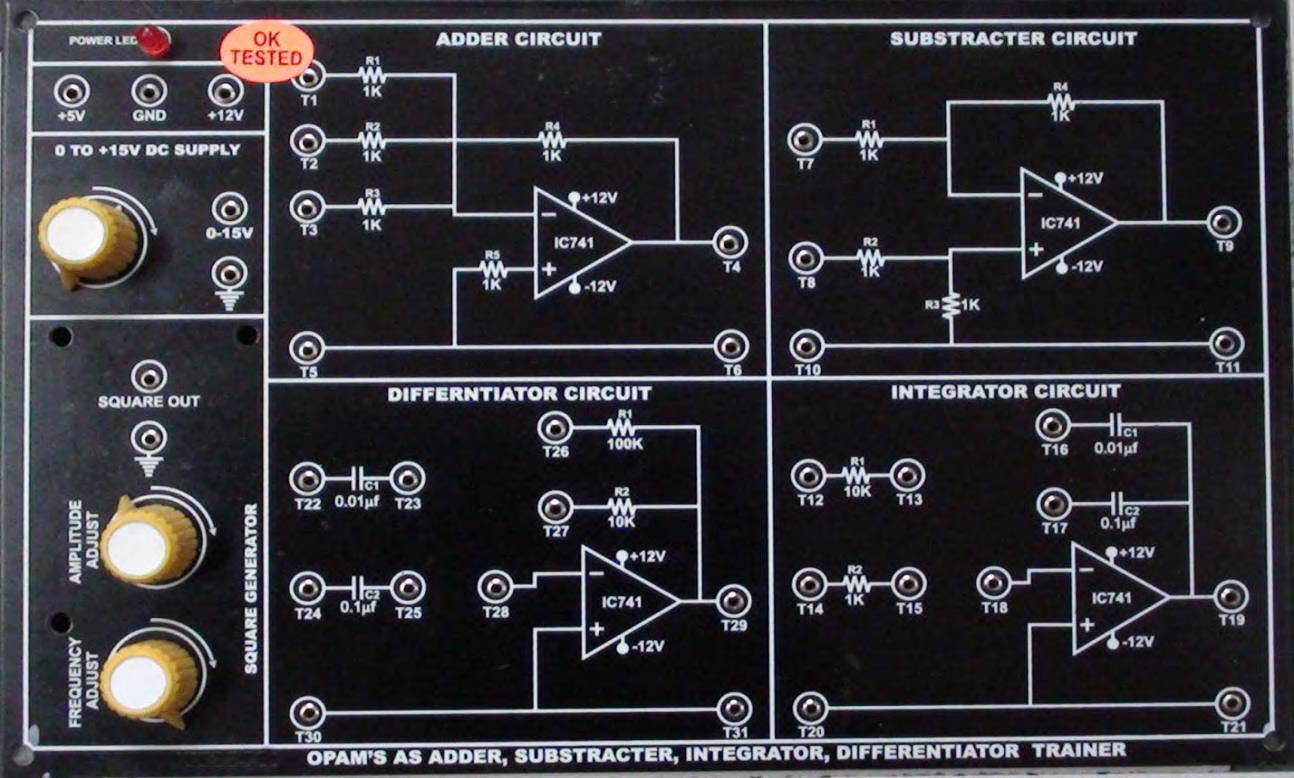

INTEGRATOR, DIFFRENTIATOR, SUMMING & DIFFERENCE AMPLIFIER USING 741 TRAINER Model ETR 020
Specifications OUTPUT Waveform – Square Frequency and Amplitude Adjustment is provided using Potentiometers. One LED indicator to indicate Power Input. On-board Circuits Adder. Subtractor Integrator Differentiator. Fixed DC power supply: + 12 V/ 200mA Fixed DC power supply: + 5 V/ 200mA Variable DC power supply: 0 to 15 V/150mA Supply connections to OP Amp (± 12 V) Internally provided to the circuit.
- Interconnections
- All interconnections are made using 2mm banana Patch cords.
- All ICS are mounted on IC Sockets.
- Bare board Tested Glass Epoxy SMOBC PCB is used.
- High impact plastic enclosures.
- Set of 2mm Patch cords for interconnections.
- User’s Manual with sample experimental programs
OUTPUT Waveform – Square
Frequency and Amplitude Adjustment is provided using Potentiometers.
One LED indicator to indicate Power Input.
On-board Circuits
Adder.
Subtractor
Integrator
Differentiator.
Fixed DC power supply: + 12 V/ 200mA
Fixed DC power supply: + 5 V/ 200mA
Variable DC power supply: 0 to 15 V/150mA
Supply connections to OP Amp (± 12 V) Internally provided to the circuit.
- Interconnections
- All interconnections are made using 2mm banana Patch cords.
- All ICS are mounted on IC Sockets.
- Bare board Tested Glass Epoxy SMOBC PCB is used.
- High impact plastic enclosures.
- Set of 2mm Patch cords for interconnections.
- User’s Manual with sample experimental programs
