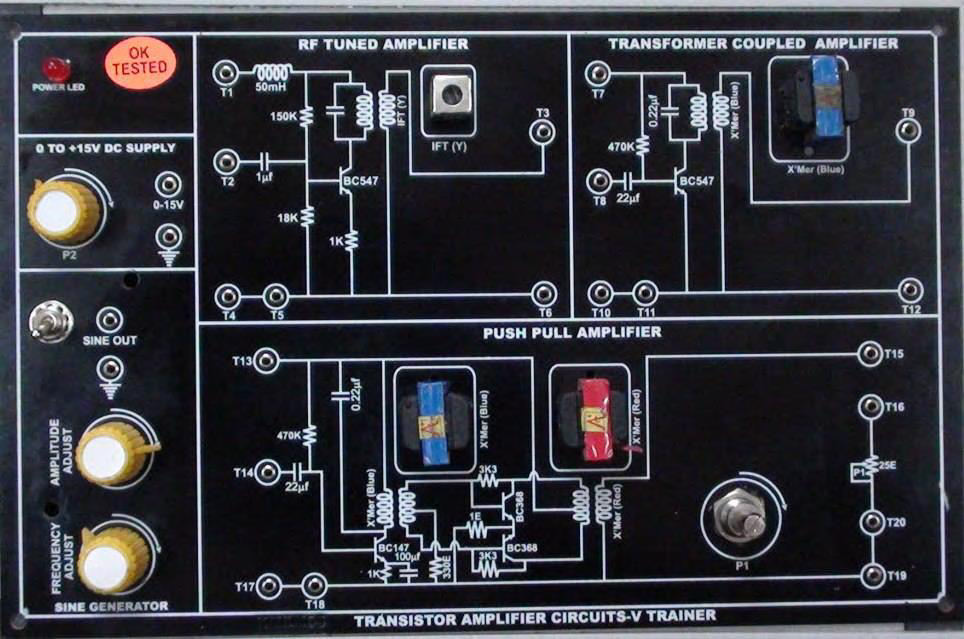

RF TUNED AMPLIFIER; TRANSFORMER COUPLED AMPLIFIER & PUSH PULL AMPLIFIER Trainer Model ETR 019

Specifications

•  Output Waveform – Sine
•  Frequency and Amplitude Adjustment is provided using Potentiometers.
•  On Potentiometer is P1.
•  One LED indicator to indicate Power input.
•  On-board Circuits
•  RF Tuned Amplifier
•  Transformer Coupled Amplifier
•  Push Pull Amplifier
•  Variable DC power supply: 0 to + 15 V/150mA

• Interconnections

• All interconnections are made using 2mm banana Patch cords.
• All ICS are mounted on IC Sockets.
• Bare board Tested Glass Epoxy SMOBC PCB is used.
• High impact plastic enclosures.
• Set of 2mm Patch cords for interconnections.
• User’s Manual with sample experimental programs
