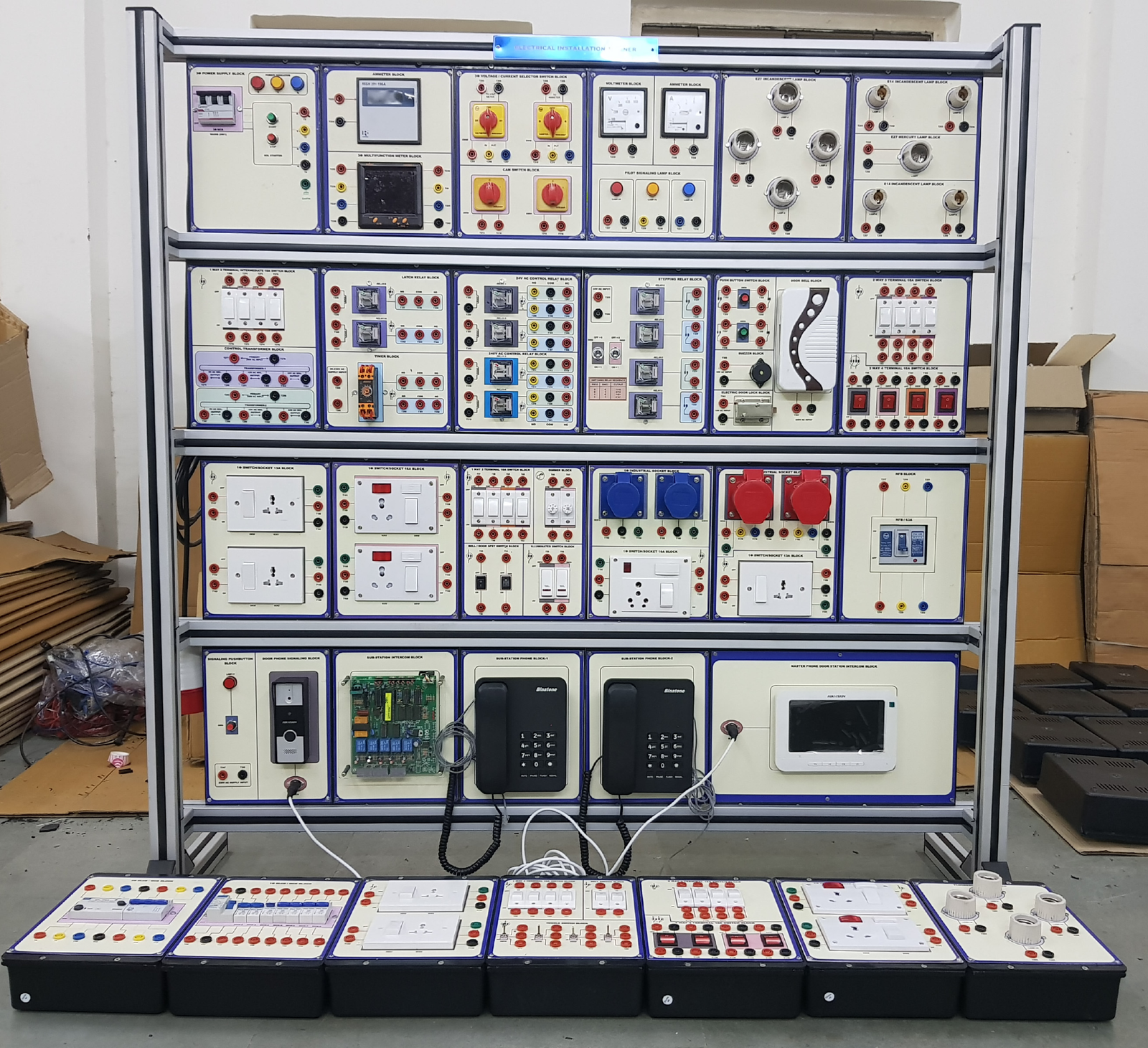

Industrial Installation Trainer – Transformer & Motor Winding –Rewinding Trainer – MODEL ELTR 20TM

List of experiments supported:

 (1) Study of components in electrical systems and their Operations.

(2) Study of Hold ON Contact Logic.                                                      .

(3) Study of interlocking contact logics with trip indication.

(4) Study of DOL starter logic.

(5) Study of Star-Delta Logic

(6) Study of phase reversal logic.

(7) Study of Sequential logic to start motors in a process plant using timers & AA panel.

(8) Transformer Winding & Re-Winding to make step-up and step-down transformers.

(9) Motor Winding & Re-Winding to assemble & re-assemble the motor
