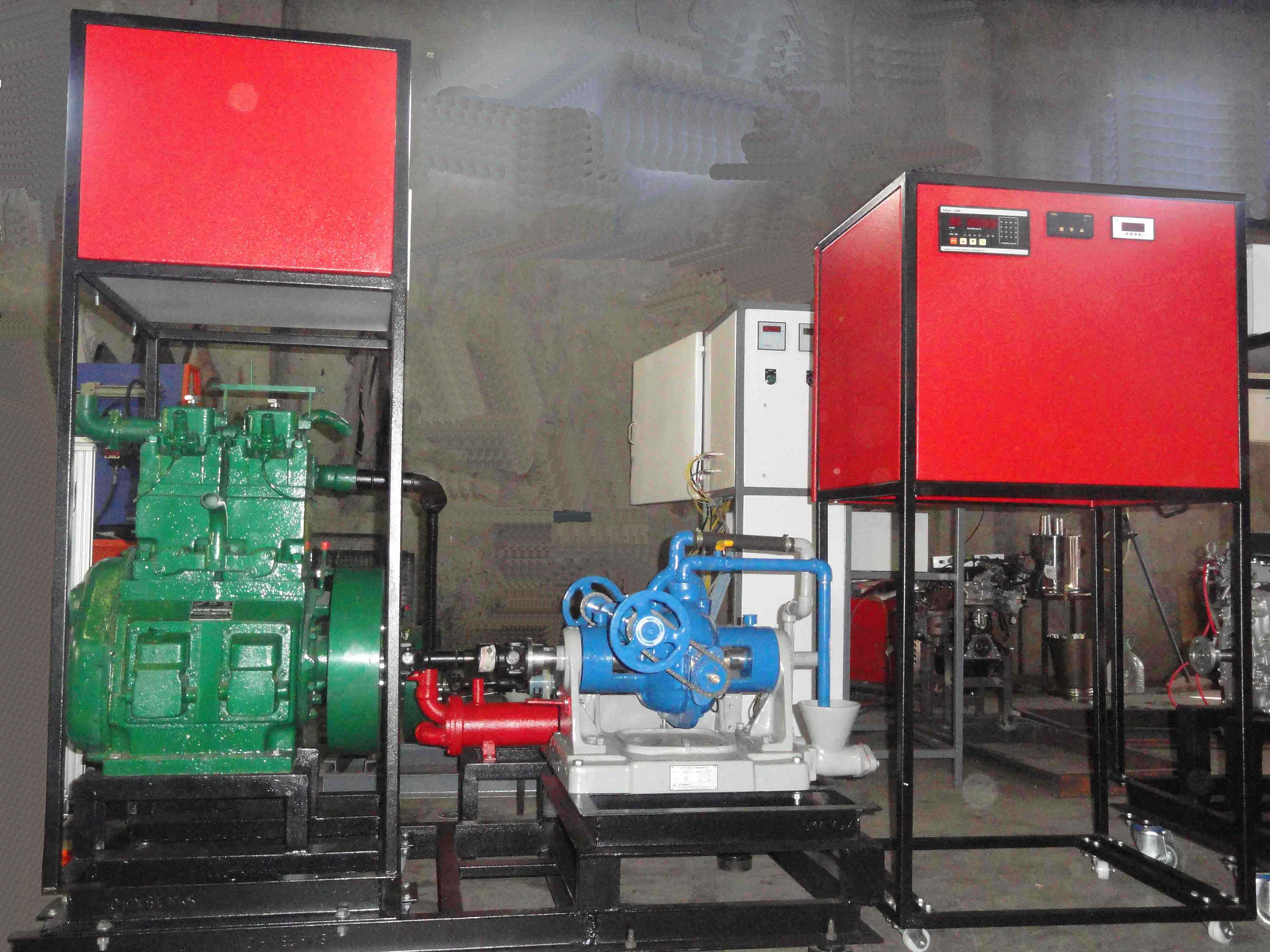

Engine Test Bed MODEL AM 244

SYSTEM SUITABLE FOR  Engine (To be Specified) 1) Engine: Single/Two/Four cylinder 1/2/4 stroke Diesel engine-80 PS at 6000 RPM Make: Brand New – Local internationally recognized engine. 2) Engine: Four Single/Two/cylinder 4 stroke Petrol engine-53.5@5,500 PS@rpm Make: Brand New – Local internationally recognized engine. Dynamometer Types 1) Eddy current Dynamometer of ratings 2KW, 7.5KW, 10 KW, 20 KW, 80 kW capacity engines 2) Hydraulic Dynamometer of ratings15 KW, 50 KW, 150 kW, 4D.C.Generator. 3) Rope Brake Dynamometer of ratings 2KW, 7.5KW, 10KW, 15KW Calorimeter Shell & Tube type Heat exchanger used for calorimeter (Optional) Control Panel A lockable closed cabinet type control panel with a glass window for visualization. It will have facility for mounting all Transmitter & space for spares. It will have sufficient space for transmitter service. It will have lock and key for safety. Base Stand Base stand is made up of mild steel C channel & Powder coated. This will have Anti-vibration pads Caster Wheels. Digital indicators are provided for all the parameters. Measurements:  Manometer  Fuel Tank, burette, three way clock  Digital Temperature Indicator with temperature sensor – 6 channel 0-400°C (If demanded)  RPM Indicator  Control Panel - for mounting of all indicators.  Electrical switches & wiring & panel  Stop Watch, measuring jar  Ammeter, Voltmeter in case of D.C. generator as dynamometer  Piping & wiring SERVICES REQUIRED AT SITE  Water supply and drainage arrangement  Facility for exhaust gas removal  Electric supply 230 V AC, 50 Hz  Foundation Bed for mounting of test rig base frame. OPTIONAL ACCESSORIES  Digital Indicators for air consumption, fuel consumption  Rotameter  Engine Indicating System  Engine Control & Data logging software  Cut Section Model
