Digital to Analogue Converter Trainer Model ETR 010

Specifications

• Eight Input Switches
• Fixed Clock
• One Manual Pulser
• One LED indicator to indicate Power input.

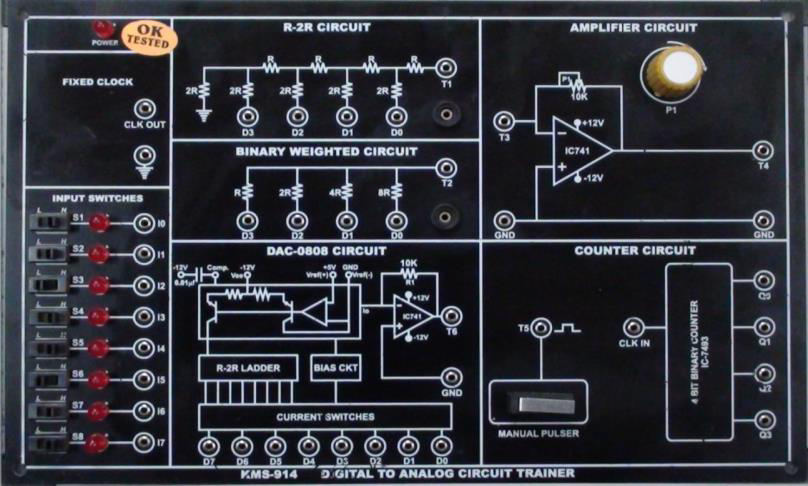

• On-board Circuits
• R-2R Circuit
• Binary Weighted Circuit
• Amplifier Circuit
• DAC-0808 Circuit
• Counter Circuit
• Fixed AC power supply : 230 VAC
• Variable Dc Power Supply: 0 to +15V
• Interconnections

• All interconnections are made using 2mm banana Patch cords.
• All ICS are mounted on IC Sockets.
• Bare board Tested Glass Epoxy SMOBC PCB is used.
• Set of 2mm Patch cords for interconnections.
• User’s Manual with sample experimental programs.
