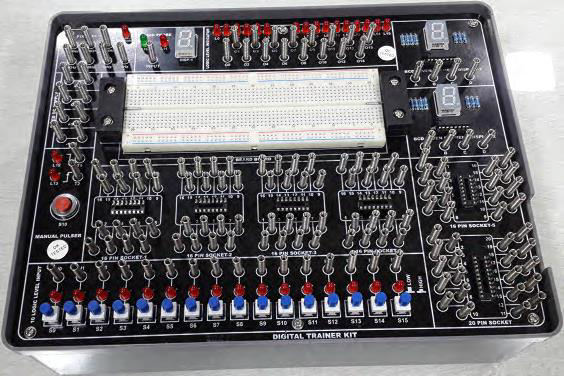

Digital Electronics Trainer Model ETR 001
Specifications
- 16 TTL/CMOS Logic Level Inputs with LED indication.
- 16 LEDs Logic Level Indicators for outputs.
- Two nos. of BCD Seven Segment Display.
- Fixed Clock Generator of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz.
- Facility for Single Pulser Generation by a push button switch.
- Logic Probe facility provided with LED indicator and one Seven Segment Display to indicate Logic High, Low and Tri-state.
- On-board general purpose 5 Nos. of 16 Pin Socket & 1 No. of 20 pin Socket.
- On-board 630 TIE point Bread Board. Fixed DC Power Supply: +5Vm & ±12V .
- Interconnections
- All interconnections are made using 2mm banana Patch cords.
- All ICS are mounted on IC Sockets.
- Bare board Tested Glass Epoxy SMOBC PCB is used.
- High impact plastic enclosures.
- Set of 2mm Patch cords for interconnections.
- User’s Manual with sample experimental programs
