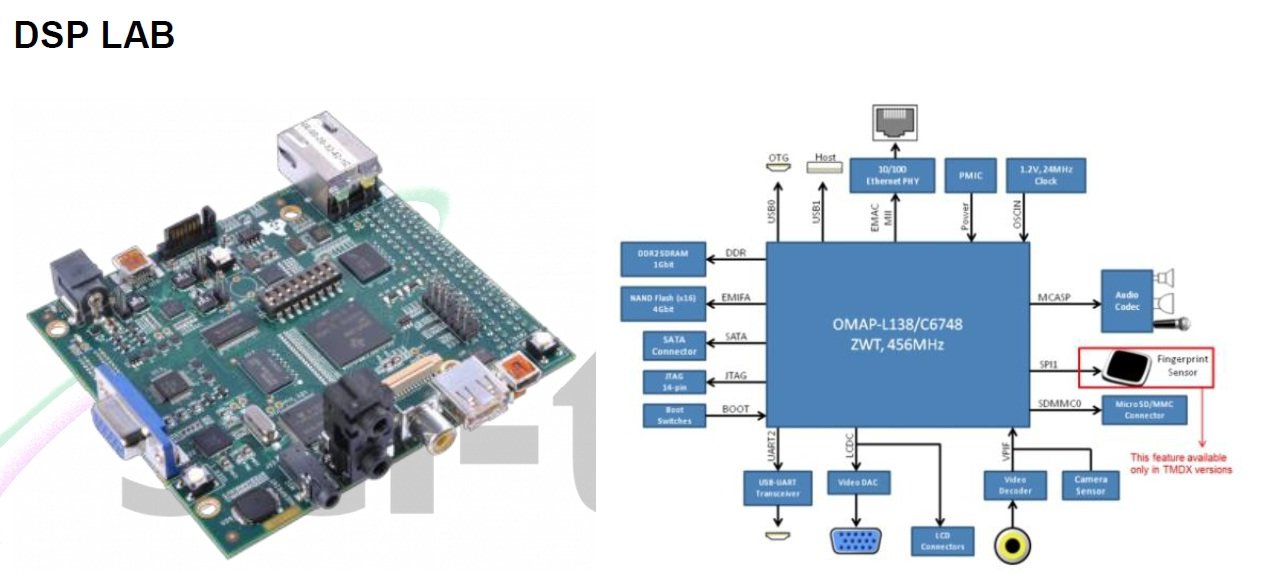

Audio – Image – Video Kit TMS 320C6748 Model TCM 021
KIT CONTENTS:
– OMAP Ll38/C6748 LCDK Kit
– Power Card
– XDS 100v2 JTAG Emulator
– USB cable
– User Manual
– Code composer studio v6.1.0 (Downloadable Version)
SKU:
821325249d3c
Categories: Telecom Trainers, Trainers
HARDWARE FEATURES:
Processor
– TI TMS320C6748 DSP or OMAP-L138 Application Processor
– 456-MHz C674x Fixed/Floating Point DSP
– 456-MHz ARM926EJ RISC CPU (OMAP-L138 only)
– On-Chip RTC
Memory
- 128 MByte DDR2 SDRAM running at 150MHz
- 128 MByte 16-bit wide NAND FLASH
- 1 Micro SD/MMC Slot
Interfaces
- One mini-USB Serial Port (on-board serial to USB)
- One Fast Ethernet Port (10/100 Mbps) with status LEDs
- One USB Host port (USB 1.1)
- One mini-USB OTG port (USB 2.0)
- One SATA Port (3Gbps)
- One VGA Port (15 pin D-SUB)
- One LCD Port (Beagle board XM connectors)
- One Composite Video Input (RCA Jack)
- One Leopard Imaging Camera Sensor Input (36-pin ZIP connector)
- Three AUDIO Ports (1 LINE IN & 1 LINE OUT & 1 MICIN)
- 14-pin JTAG header (No onboard emulator; external emulator is required
