Thermal Conductivity: Through Composite Walls Model TH 023
– Compact, comprehensive, sturdy design
– Fully instrumentation for experimentation of Heat transfer.
– Direct reading of temperature, voltmeter, and ammeter measurement.
– Demonstration of heat transfer through composite wall apparatus.
– Fault Trainer as optional attachments

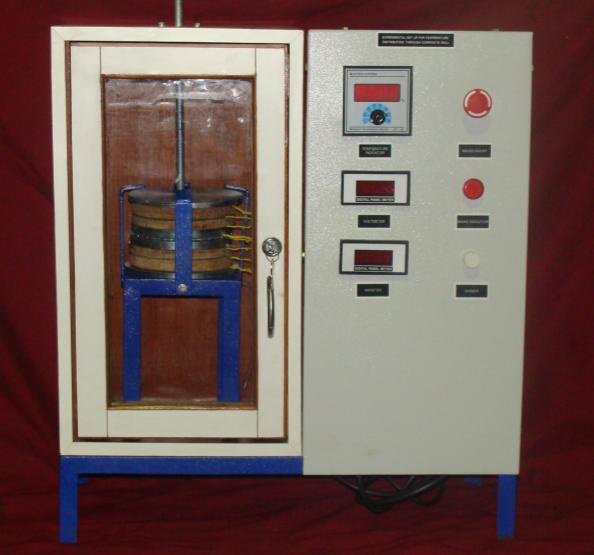

Sci-tech Thermal Conductivity through Metal Walls Apparatus Model TH 023 consist of three slabs of different materials & different thickness. The three slabs are fixed together using nuts & bolts. Electrical heaters give heat energy to this slab unit. Temperature indicator & sensors are used for accurate temperature measurement. For better result the experiment console is placed inside a wooden box having glass at one side. Study of temperature distribution across the width of the composite wall & over all thermal conductances can be easily demonstrated & calculated with this trainer.
