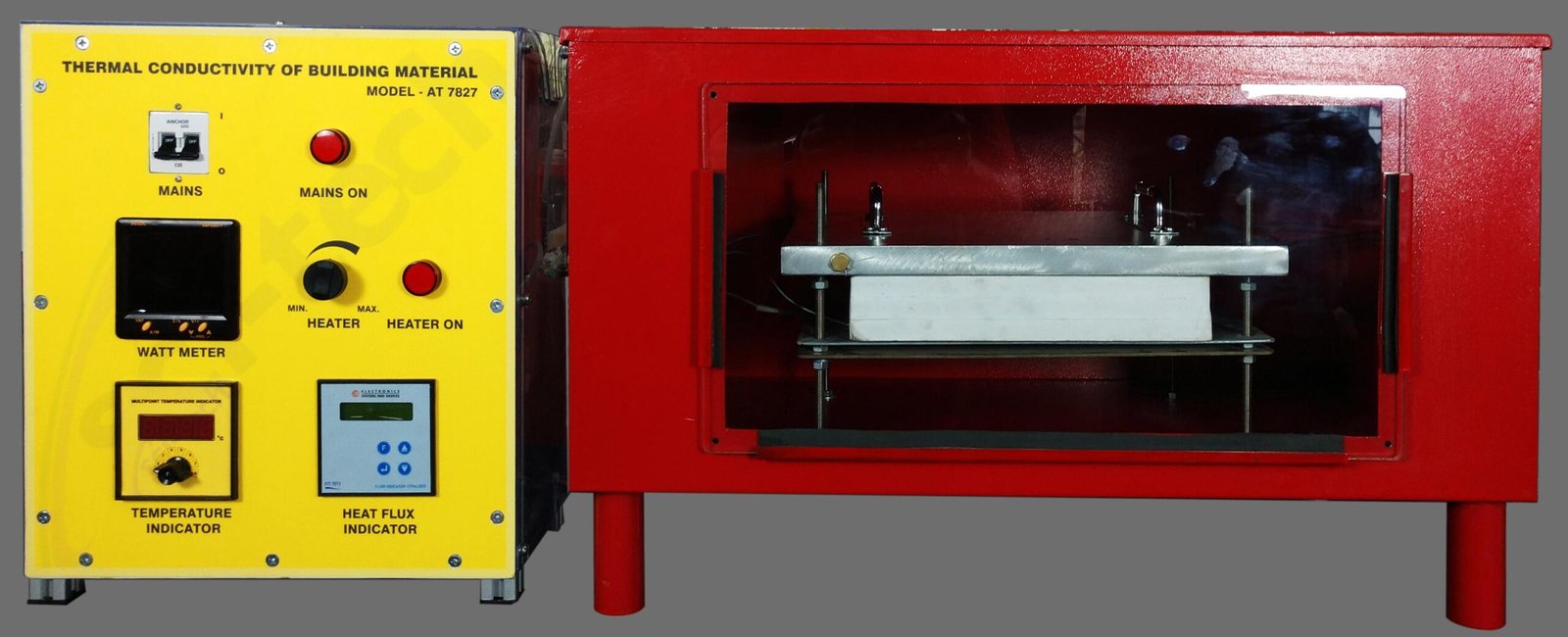

Thermal Conductivity of Building Materials Apparatus Model TH 074
This experimental unit enables experiments to be performed on steady-state heat conduction in non-metallic materials such as polystyrene, PMMA, cork or plaster in accordance with DIN 52612.
Specimen sheets are placed between a heater plate and a water-cooled plate. A clamping device ensures that the clamping pressure and thermal contact are reproducible. A special sensor measures the heat flux. Electronic controllers keep the temperatures of the heater plate and cooling plate constant within close limits. The measured values are transmitted directly to a PC via USB. The data acquisition software is included.
[1] determination of the thermal conductivity of building materials
[2] thermal conductivity k and thermal resistance measurement
[3] reproducible clamping pressure due to clamping device
[4] 8 specimens to be put between hot and cold plate
[5] hot plate with heater mat
[6] cold plate with water cooling and heat flux sensor
[7] software controllers for temperature adjustment of hot and cold plate (Optional)
[8] 3 temperature sensors for the cooling water: at inlet, at outlet and a mid temperature of the hot and the cold plate
[9] 2 temperature sensors for surface temperature
[10] Optional software for data acquisition via USB under Windows Vista or Windows 7
Electric heater mat
- power: 500W
- max. temperature: 200°C
Specimens
- LxW: 300x300mm
- thickness: up to 50mm
- material: Armaflex, grey cardboard, PMMA, polystyrene, PS, POM, cork, plaster Measuring ranges
- temperature: 3x 0...100°C, 2x 0...200°C
- heat flux density: 0...1533W/m²
