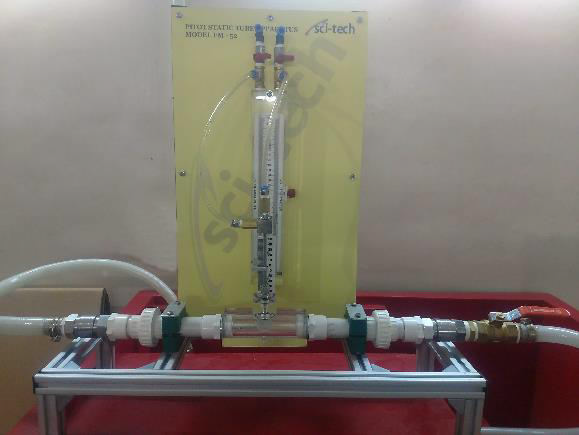

PITOT STATIC TUBE APPARATUS Model FM 52

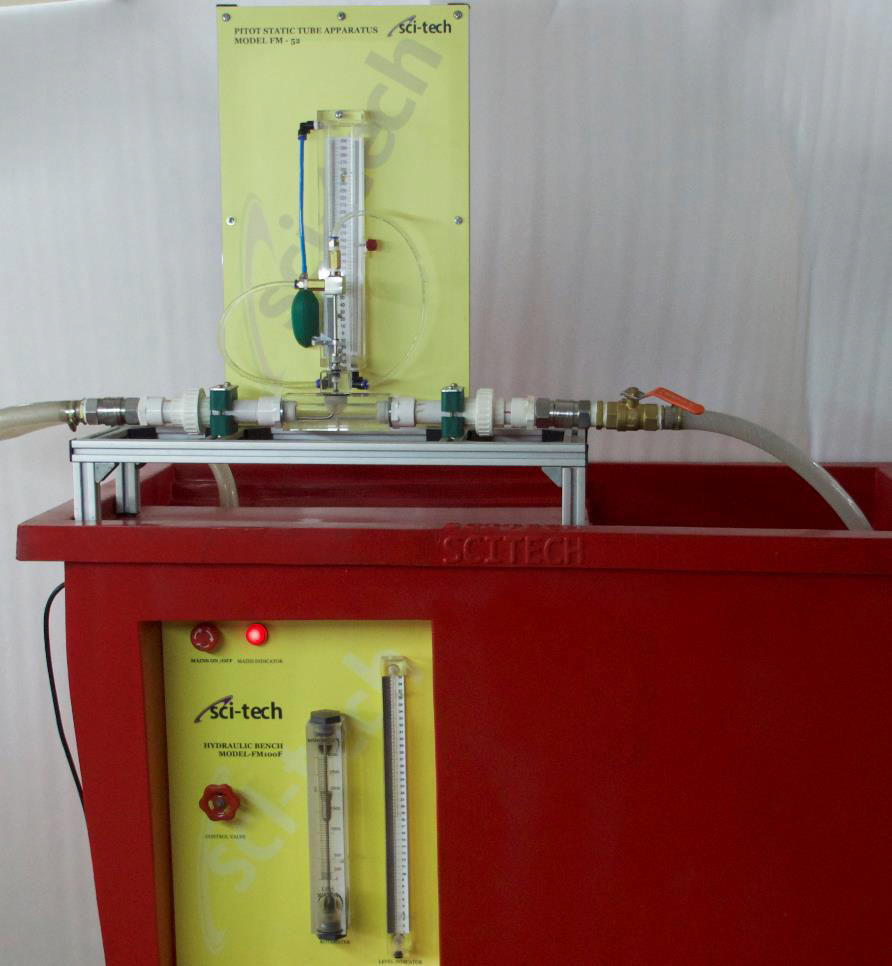

Sci-tech Pitot Static Tube Apparatus Model FM 52 is used to measure the local velocity at a given point in the flow stress. A pitot tube of standard design made of copper/SS is supplied and is fixed below Vernier scale. The Vernier scale is capable to measure the position of Pitot Tube in transparent pipe section. The pipe has a flow control valve to regulate the flow. A U-tube manometer is provided to determine the velocity head. Set-up is self-contained water re-circulating unit, provided by Sci-tech as ‘Hydraulic Bench Model FM 100, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.
Features
- Pitot Tube: Material Copper/SS of compatible size
- Test Section
- Fitted with Vernier Scale
- Material Clear Acrylic.
Sci-tech Pitot Static Tube Apparatus Model FM 52 is used to measure the local velocity at a given point in the flow stress. A pitot tube of standard design made of copper/SS is supplied and is fixed below Vernier scale. The Vernier scale is capable to measure the position of Pitot Tube in transparent pipe section. The pipe has a flow control valve to regulate the flow. A U-tube manometer is provided to determine the velocity head. Set-up is self-contained water re-circulating unit, provided by Sci-tech as ‘Hydraulic Bench Model FM 100, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.
- To find the point velocity at the center of a tube for different flow rates of water and calibrate the Pitot tube
- To plot velocity profile across the cross section of pipe
- Water Supply & Drain
- Electricity Supply: Single Phase, 220 VAC, 0.5 kW
- Sci-tech Hydraulic Bench Model FM 100F or equivalent hydraulic bench.
