Pilot Plant for Study of Batch Distillation Model TH 041
– Designed to demonstrate Batch Distillation Process.
– Distillation of several mixtures possible.
– Comprehensive Instrumentation Panel with all necessary measuring instruments & Safety Devices.

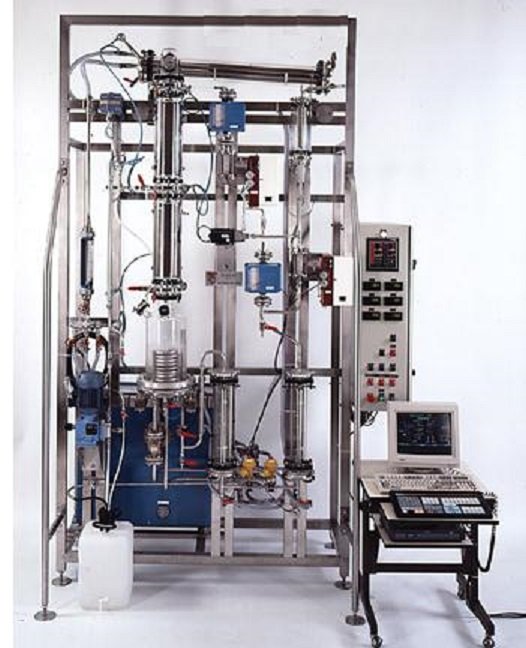

Scitech Pilot Scale Continuous Distillation Column Model TH 041 has been designed and constructed to demonstrate the batch distillation process. It includes a borosilicate glass distillation column including a re-boiler, a sieve-tray column and condenser with reflux head and reflux valve. Glass tank for collection of the distillate is also included.
The Pilot Plant comprises the following main items:
- Wheeled AISI 304 stainless steel structure
- Borosilicate glass distillation column, DN50, h-600-765 mm approx. with 7 sieve trays
- Borosilicate glass tank for the distillate, 1-2 L
- Variable – area flow meter
- Borosilicate glass reboiler of 3 L capacity, including electrical heater
- 6 digital thermometers
- Borosilicate glass condenser with reflux head
- AISI 304 stainless steel tube-in-tube heat exchangers
- Thyristor control unit for the reboiler electrical heater
Switchboard IP55, complying with CE standards. With plant synoptic and ELCB and emergency pushbutton
