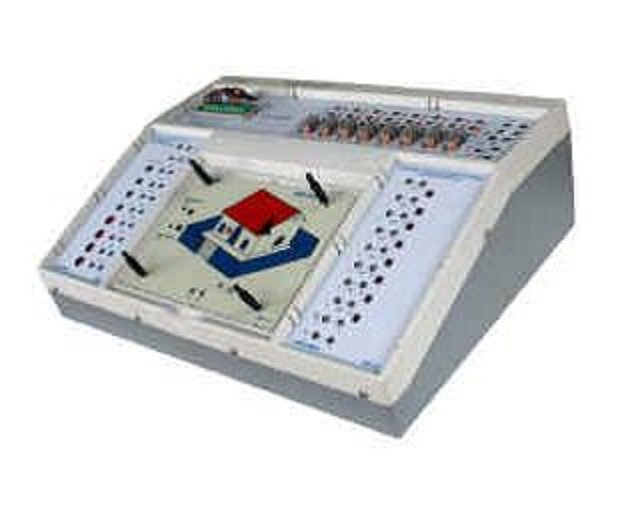

Mini- PLC Trainer Model PCT 037

Model - PCT 037 Make - Delta DVP-14SS Memory - 3792 Step (EEPROM DIO modules (Optional) - DIO14 : DI(8), DO(6) Transistorized or relay Software - WPL Soft 2.12 supports ladder programming & monitoring troubleshooting & instruction set, Simulation Software. Communication Port - RS232C for Ladder Programming, USB Cable Operating voltage - 110/220Vac 20%50/60 Hz Mechanical Specification - Electronic desk with ergonomically designed ABS Molded enclosure with slick looking replaceable experimental panel. Inclusive of CDP on Top board & SEP onside panels provide input switches, push buttons, O/P LED or SAPS Dimensions & Net Wt 460 (H) x 160 (L) x 350 (D) mm. @ 5Kgs Converter cum Distribution Panel / CDP: Located on Top board, Total 16 No. of 4 mm Banana Sockets, 8 for Digital for Digital Outputs, 24V Supply & GND. Facilitates easy wiring. Simulation cum Extension Panel / SEP a) For Digital Outputs: Located on right side panel 8 No. of Output LED Indicator, 8 No. of Relay Panel with coil rating 24V and contact rating of 220V AC / 1 Amp. (Resistive). b) For Digital Inputs: Located on left side panel. 8 No. of Digital Input. (4 toggle switches + 4 push buttons) Power Supply Panel: 24V / 2 Amp. SMPS type Supply, 12 No. of 4mm Banana Sockets for extension, Power ON indicator /On PLC Front Panel Application Panel & SAPS (Select 1 or more) a) For Digital Outputs: - 8 No. of LED Indicator, 8 No. of Relay Panel with coil rating 24V. and contact rating of 220V AC/1 Amp (Resistive). b) For Digital Inputs: - 8 No. of Digital Input.(4 toggle switches + 4 push buttons) c) For AIO: (Supplied only if AIO modules ordered)
