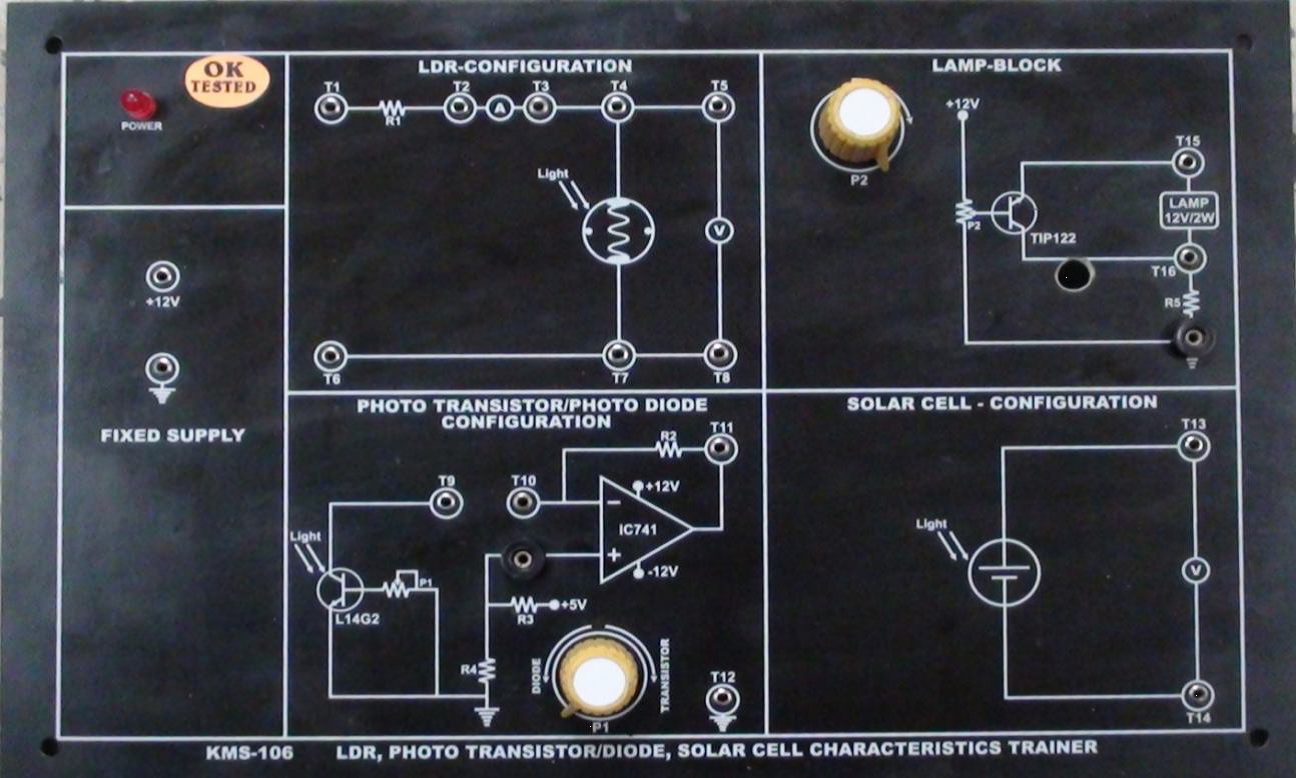

LDRs, Photodiodes, Photo-Transistors & Solar Cell Characteristics Trainer Model ETR 024
Sci-tech LDRs, Photodiodes, Photo-Transistors & Solar Cell Characteristics Trainer
On-board circuits
LDR-configuration
Lamp Block
Solar Cell Configuration
- Resistance Block consisting of One Resistance of 1K and two Potentiometer of 100K
- One LED indicator to indicate Power input
- Photo Transistor/ Photo Diode Configuration
- Fixed DC Power Supply: 0 to +12V
- All interconnections are made using 2mm banana Patch cords
- Bare board Tested Glass Epoxy PCB is used
- Set of 2mm Patch cords for interconnection
