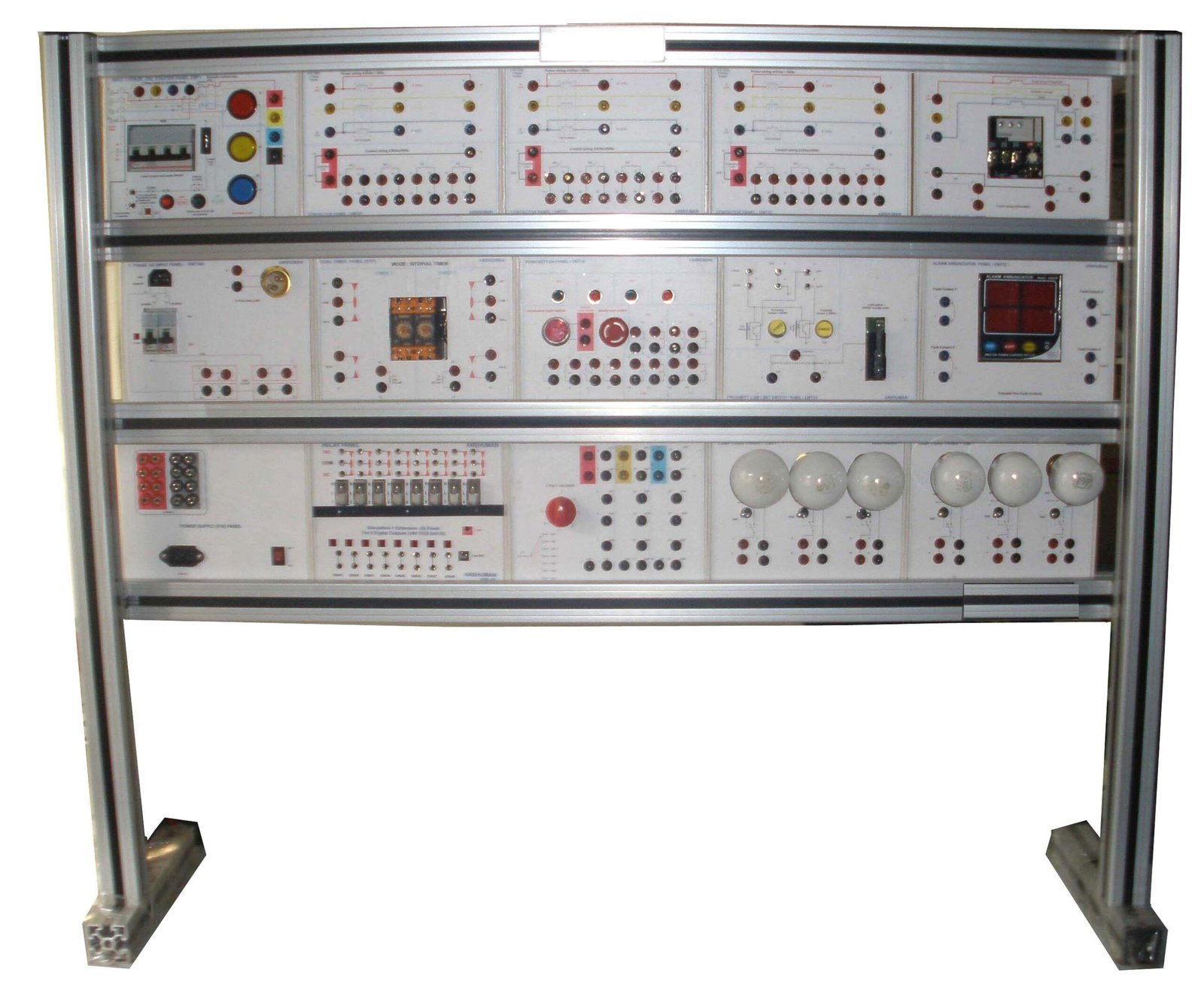

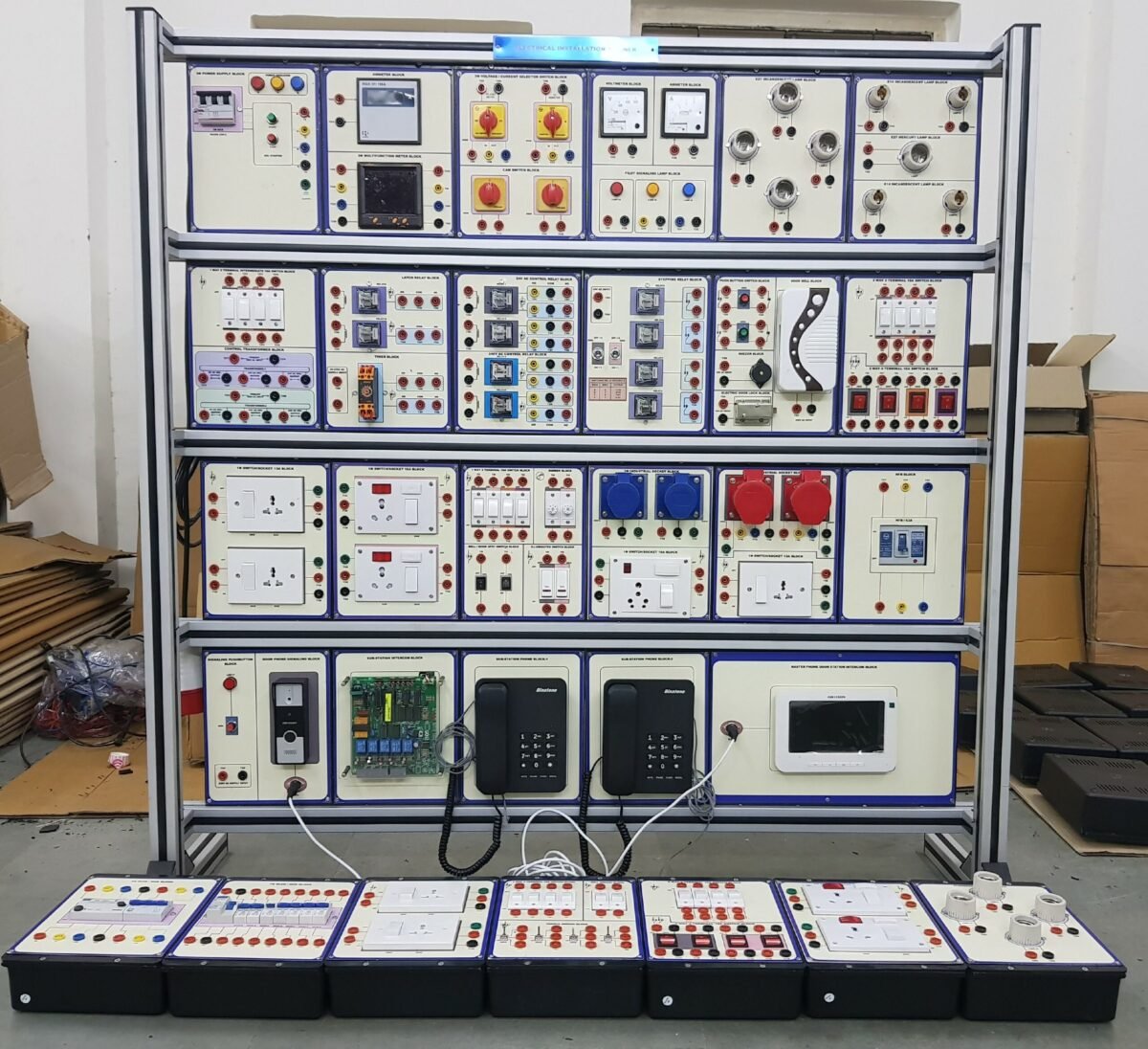

Industrial Installation – Transformer & Motor Winding –Rewinding Motor/Generator & Trainer MODEL ELTR 20TMGM
– Facilitates easy and safe wiring by students due to use of 4mm sturdy Shrouded banana patch cords and shrouded socket arrangements for high voltage circuits
– Each panel is made of non-breakable tough acrylic plate and colorful screw-less overlays showing circuits diagrams & its connection tag numbers for easy understanding and connection
– Numerous possibilities of testing of motors, transformers, electrical circuits.
SKU:
16c109b3ce1b
Categories: Electronics Trainer, Trainers
– Separate Transformer winding cores and copper coils for understanding step-up and step-down transformers
– Separate motor re-winding of motor rotors: assembly & re-assembly of a motor
– Separate Motor – Generator Trainer Mounted on a chassis to include DC & AC Motors
DOWNLOAD BROCHURE:
ELTR020TMGM_IndustrialInstallationTransfMGTrainer
A] Flat Aluminum profile sturdy panel (table top) system, 5X3 modular structure, carrying various high voltage components housed in plastic enclosures (panel) to minimize shock possibility. * Input 3 phase DOL Starter panel (EMT1) [10 Shrouded Banana] - 4 pole MCB of 415 V/1A . - DOL 9A Contactor with 230V / 50 Hz / 11VA COIL . - Bimetallic thermal O/L relay with range 1.4A - 2.3A . * Lamp Load Panel (EMT7) X 2 nos [12 Shrouded Banana] - Each panel consists of 230V /15/40/60/100W X 3 bulbs with individual ON/OFF using 6A toggle switch * 1ø MCB Isolator Panel (EMT 16A) [10 Shrouded Banana] - 1ø MCBs of 4A/1.6A – 2nos, one lamp load * Contactor panel (EMT 27) X 3 nos [28 Shrouded Banana] - 9A Contactor with 230V / 50 Hz / 11VA COIL with 3 nos NO type power contact 2 NO & 2 NC addon Logic contact. * Over Load Relay Panel (EMT 28) [17 Shrouded Banana] - Bimetallic thermal O/L relay with range 440V/1.4A - 2.3A with 3 power contacts. - Supports trip Contact & Alarm contact. * Push Button Panel (EMT 29) [24 Shrouded Banana] - Consists of Industrial grade Illuminated push button with one NO & one NC contact. - Supports One Mushroom Switch, 4 nos of smaller type instruments grade push buttons with one NO & one NC contact for each. * 3 Pole 7 way CAM Switch Panel (EMT 30) [27 Shrouded Banana] - Consists of 3 pole 7 way CAM switch connection brought out on Banana. * Proximity cum Limit switch Panel (EMT 31) [6 Banana + 3 Shrouded Sockets] - Consists of 2 nos of NPN type proximity sensors operated on 24VDC supply..RELATED PRODUCTS
