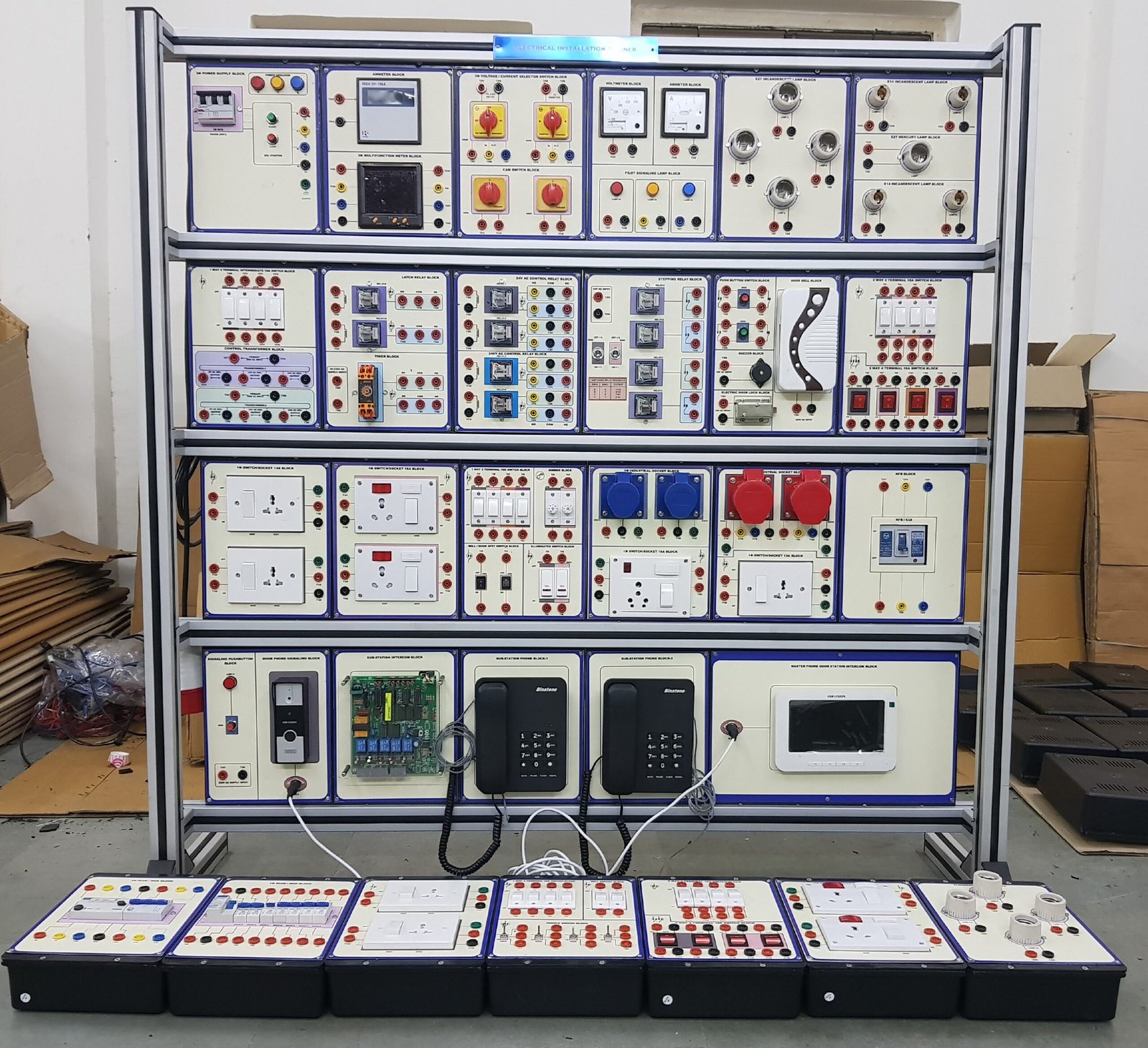

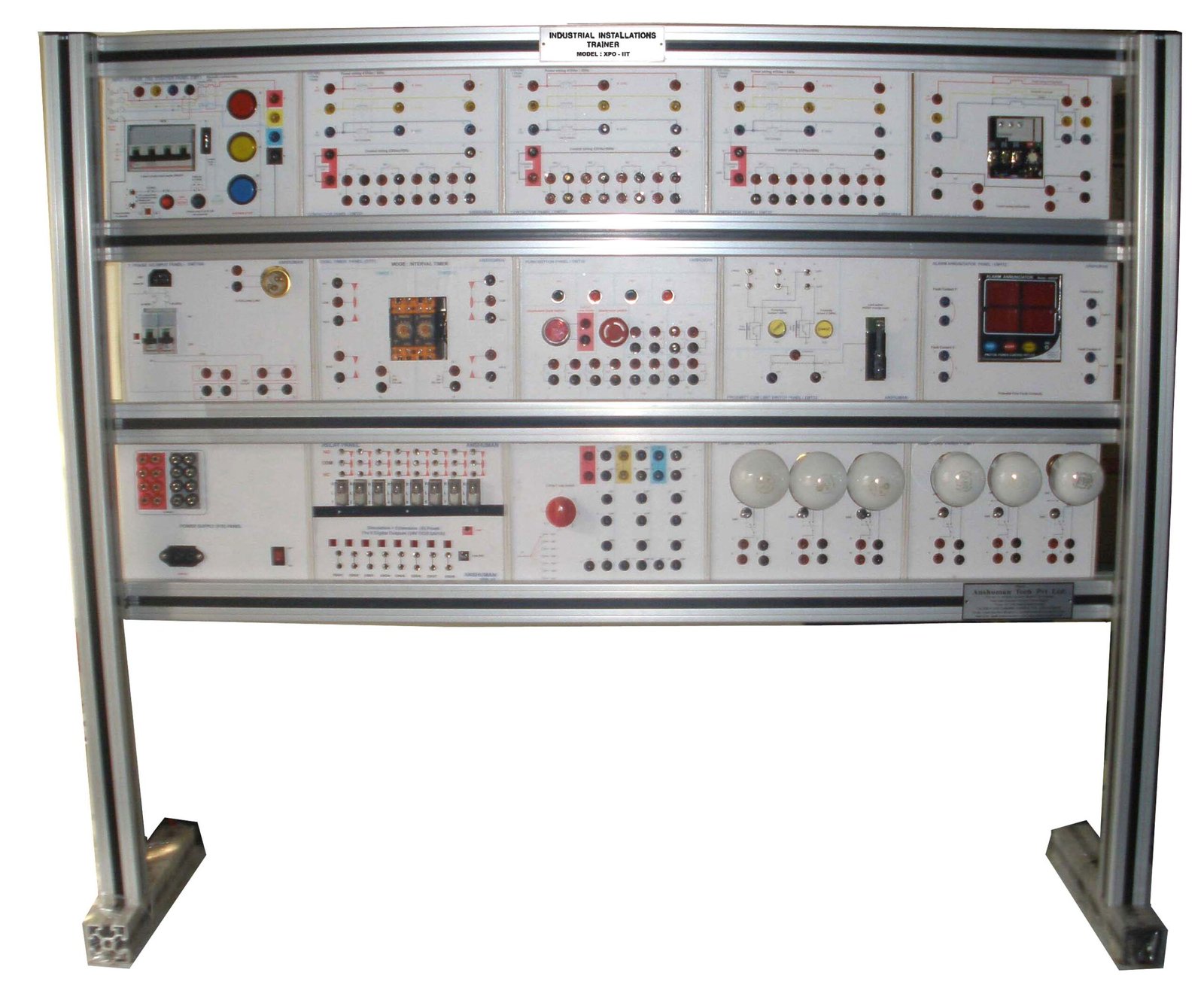

A] Flat Aluminum profile sturdy panel (table top) system, 5X3 modular structure, carrying various
high voltage components housed in plastic enclosures (panel) to minimize shock possibility.
- Input 3 phase DOL Starter panel (EMT1) [10 Shrouded Banana]
- 4 pole MCB of 415 V/1A .
- DOL 9A Contactor with 230Vfa / 50 Hz / 11VA COIL .
- Bimetallic thermal O/L relay with range 1.4A - 2.3A .
* Lamp Load Panel (EMT7) X 2 nos [12 Shrouded Banana]
- Each panel consists of 230V /15/40/60/100W X 3 bulbs with individual ON/OFF using 6A toggle switch
* 1
⌀ MCB Isolator Panel (EMT 16A) [10 Shrouded Banana]
- 1
⌀ MCBs of 4A/1.6A – 2nos, one lamp load
* Contactor panel (EMT 27) X 3 nos [28 Shrouded Banana]
- 9A Contactor with 230V / 50 Hz / 11VA COIL with 3 nos NO type power contact 2 NO & 2 NC addon Logic contact.
* Over Load Relay Panel (EMT 28) [17 Shrouded Banana]
- Bimetallic thermal O/L relay with range 440V/1.4A - 2.3A with 3 power contacts.
- Supports trip Contact & Alarm contact.
* Push Button Panel (EMT 29) [24 Shrouded Banana]
- Consists of Industrial grade Illuminated push button with one NO & one NC contact.
- Supports One Mushroom Switch, 4 nos of smaller type instruments grade push buttons with one NO &
one NC contact for each.
* 3 Pole 7 way CAM Switch Panel (EMT 30) [27 Shrouded Banana]
- Consists of 3 pole 7 way CAM switch connection brought out on Banana.
* Proximity cum Limit switch Panel (EMT 31) [6 Banana + 3 Shrouded Sockets]
- Consists of 2 nos of NPN type proximity sensors operated on 24VDC supply..
- Supports One change over type limit Switch with NO & NC contact.
* Alarm Annunciator Panel (EMT 32) [8 Shrouded Banana]
- Consists of four no potential free fault contacts.
- Supports four no of fault windows with flashing indication & Alarm annunciation.
* 24VDC Power Supply Panel (EMT 33) [16 Banana Sockets]
- Input 230VAC, output 24VDC/2A.with extenders for connections.
* Dual Timer Panel (DTP) [14 Shrouded Banana]
- Consists of two nos of Individual Timers 24V DCor 230Vac operated supply coil.
- Each Timer Supports 2 NO & 1 NC contacts.
* Relay Panel (SEP-03) [16 Banana Sockets]
- Consists of 8 nos of change over type relays with NO, NC & Common contacts for each with supplly coil of 24VDC. Supports lamp LED lamp Indication for 8 outputs.
- Optional 3D AC Squirrel cage Foot mounted motor with 6 terminals broughts out for star delta Expt.
