FLUIDS SPECIFIC GRAVITY & DENSITY TEST APPARATUS Model FM 105

Sci-tech Specific Test Apparatus consists of:

• Pycnometer bottle
• Volume : 10ml
• Material : Glass

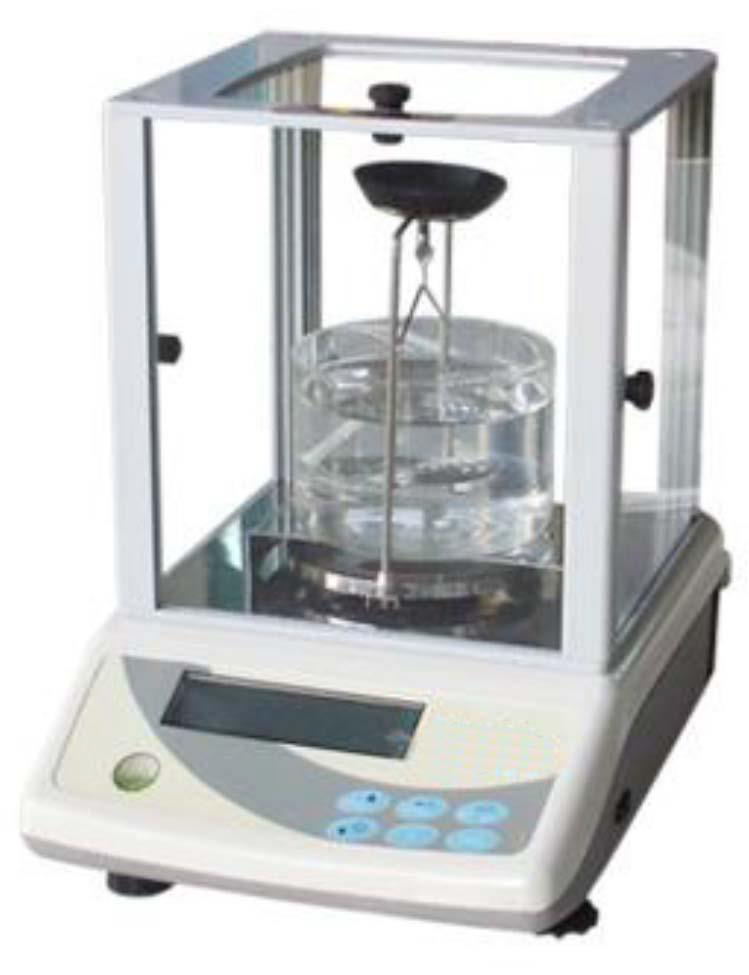

• Precision Electronic Scales
• Capacity : 500 g
• Resolution ; 0.1 g
• Accuracy : 0.01 g
• Display : LCD
• Power : 2 x AAA battery
• Medium: Water, Oil with different Specific Gravity

  Sci-tech Liquid Density Apparatus comes with the following features:

• Hydrometer:
• Triple Scale : Specific Gravity (0.99 – 1.17),

Brix/Balling (0-35), Potential Alcohol (0% - 20%)

• Color-coded scale: indicates the starting and finishing point
• Save time. Convenient 3 in one tool allows user quickly and accurately measure vital information on the liquid
• Secure & Safe Packaging: Plastic tube cylinder holds hydrometer
• Triple scale reading – use all three reading scales for the measurement for experiment exercise
• Accurate measurements, and the proposed hydrometer is coloured in 3 different colours for easier measurement
• Hydrometer jar, shall be made of glass material with minimum volume of 2,000 ml.

  Sci-tech Viscosity Apparatus consists of a capillary tube of fine bore fitted on a wooden board. Then two ends are joined by a rubber tubing which is joined to two upright L-shaped glass tubes forming the manometer with scale. With the help of a pinch cork, a steady flow of water is maintained. Complete with a three limbed constant level tank of brass, one stand with rubber tube and glass parts of corning glass.

• Measures up to ten of cm (mm2/s)
• Comply with standard ISO/DIS 3105, ASTM D 2515, BS 188 wrt technical measuring specification.
• Measures liquid viscometer up to 800 mm2/s or higher.
• Filling quantity: @ 2… 10ml
• Overall length: @ 200mm
