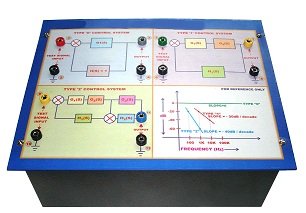

Electrical Linear Drive Training Kit Model PCT 017
Completely self contained stand – alone unit
Designed for educational & experimenting purposes
Demonstrates the principle and working of various control systems (Type 0, Type 1 & Type 2) for bode plot characteristics
Study of frequency response, gain calculation, transfer function, logarithmic plot consisting of two graphs viz, logarithmic of magnitude and phase angle (combined plots are called as Bode plot) for various control systems (Type 0,1, 2)
Built – in IC based DC regulated power supply with short circuit protection and indication for supply “ON”
Multi - coloured test points are provided at various stages to observe the voltage and waveform
Set of necessary patch cords
Housed in an elegant cabinet with a well spread intelligently designed multicoloured layout on the front panel
Strongly supported by a comprehensive instruction manual complete with theory and operating details
Supply required 230V, 50Hz AC
