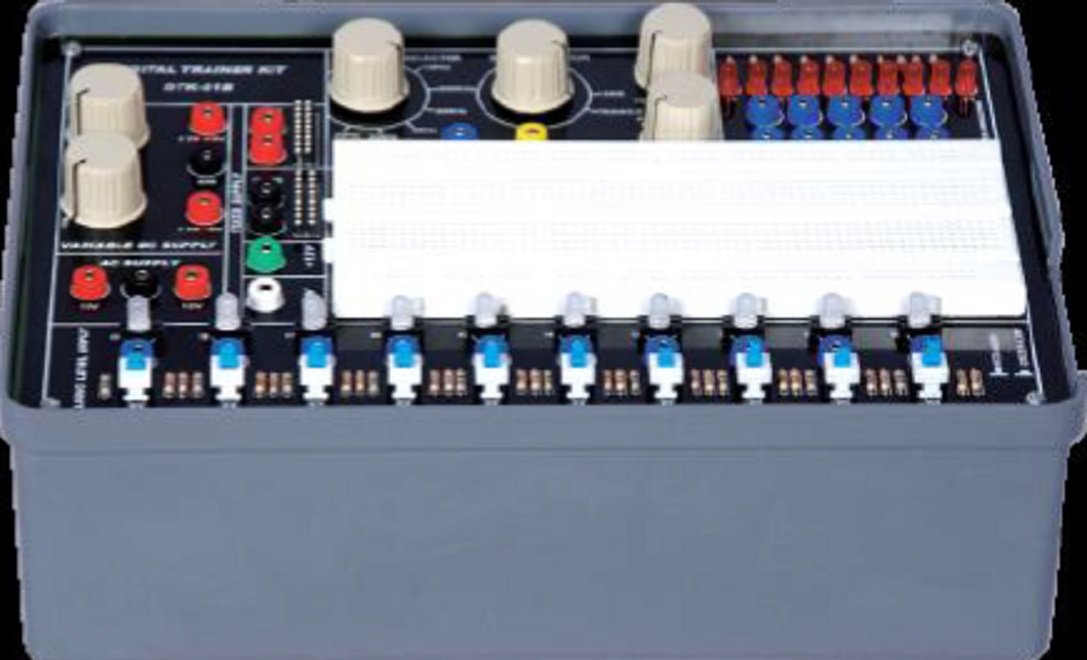

DIGITAL/ANALOG TRAINER KIT MODEL DTK-01A
* Indicators
– 10 TTL/CMOS Logic Level Inputs with Dual Color LED indication for logic low and logic high
– 10 LED for output indication.
* Clock Generator
– Fixed Clock generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz.
* Pulse Generator
- Logic Pulsar provides single pole double throw bounce less pulses of Low to High and High to Low
transitions
* Logic Probe
- Logic Probe facility provided with LED indicators to indicate Logic High, Low & Tri-state
* Potentiometers
- Variable potentiometers of 1K, 10K 100K provided on board
* Bread Board Area
- Four Distribution Strip of 100 tie points each totaling 400 tie points
- Two Terminal Strip of 630 tie points totaling 1260 tie points
* Function Generator (using IC 8038).
- Provides Sine, Square and Triangular output waveforms.
- Frequency variable from 0-200 KHz in FIVE steps.
* Display
- Four digit seven-segment LED display.
* Power Supplies
- Fixed DC Power Supply: +5V, ±12V.
- Variable DC Power supply of +1.2V to +15V & -1.2V to –15V.
- AC Power Supply of 15V-0-15V
* Interconnections
- All interconnections are made using 2mm banana Patch cords.
* All ICS are mounted on IC Sockets.
* Bare board Tested Glass Epoxy SMOBC PCB is used.
