Basic Satellite Communication Training System (2.4GHz) Model TCM 006

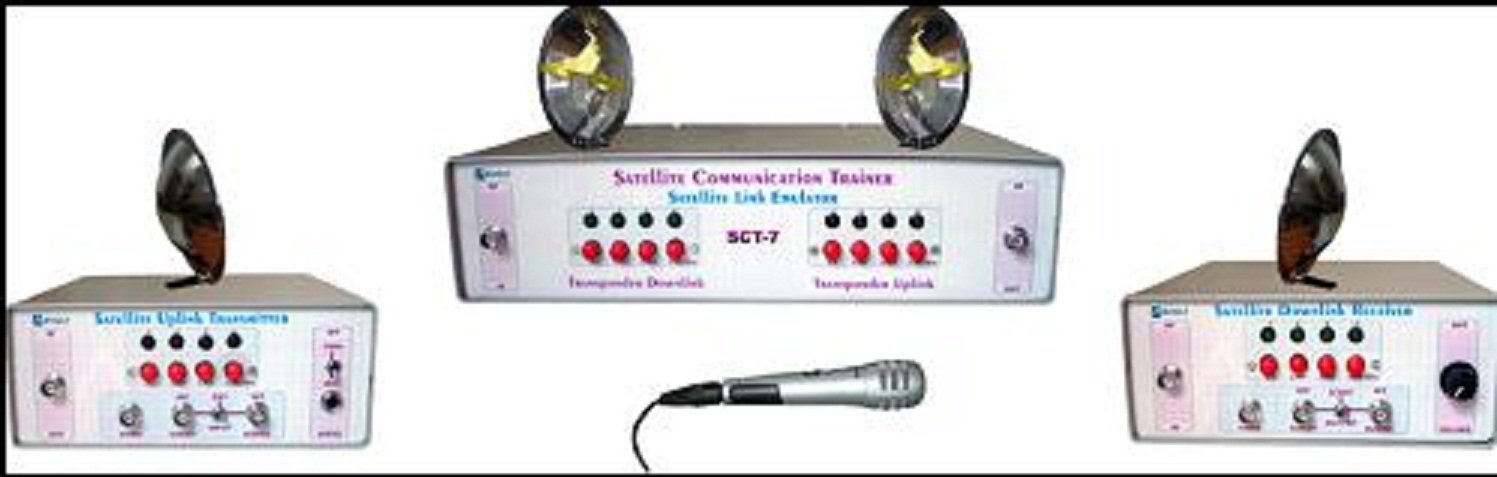

Sci-tech Basic Satellite Communication Trainer Model TCM 006 is the first of its kind using actual techniques of satellite communication. It can uplink a given signal to a satellite link emulator, which can be stationed far away. The satellite will then re-transmit the same signal at a different frequency to a downlink station, which will receive the signal. Audio signal can be fed through a condenser microphone provided at Transmitter and reproduced on built-in loud-speaker at Receiver. Video signal can be sent from camera and viewed on a monitor. Actual emulation of satellite communication link can be performed with emulation of link fail, frequency translation.

Add to wishlist

SKU: 4110e2057a75 Categories: Telecom Trainers, Trainers

Description
Technical Specification

* High frequency microwave operation
* Emulation of frequency translation
* High RF output power and low noise
* PLL synthesized frequency in Transmitter, Receiver and Satellite Emulator
* Emulation of link fail
* Condenser microphone and speaker provided for audio link
* Satellite emulator has antennas, frequency transponder for communication link
* 4 large Dish antennas provided for linear polarization study

Satellite Uplink Transmitter Frequency : 2.4, 2.427, 2.454 & 2.481 Ghz PLL Controlled ISM Band Audio 1 : Int. 1KHz sine wave / Ext Mic Audio 2 : Int. 1KHz sine wave / Ext Mic Video : Input from Camera / VCD (with V out) Satellite Downlink Receiver Frequency : 2.4, 2.427, 2.454 & 2.481 GHz PLL Controlled ISM Band Audio 1out : Speaker inbuilt / output Audio 2 out : Speaker inbuilt / output Video Out : 5MHz, 1V p/p Satellite Link Emulator Transponder Uplink Frequency : 2.4, 2.427, 2.454 & 2.481 Ghz PLL Controlled ISM Band Transponder Downlink Frequency : 2.4, 2.427, 2.454 & 2.481 Ghz PLL Controlled ISM Band Link Fail : Switch to disable link Antennas Parabolic detachable dish antenna with mount X4 Accessories 1. Microphone 2. BNC to A/V cables - 6 Nos. 3. Mains cord - 3 Nos. 4. Operating Manual Options (at extra cost) : B/W mini portable TV Suitable B/W Camera Generator Unit (Pattern) Interference Generator
