Automotive Hydraulic – Pneumatic Braking System Demonstrator Model AM 011
Hydraulic – Pneumatic Braking System

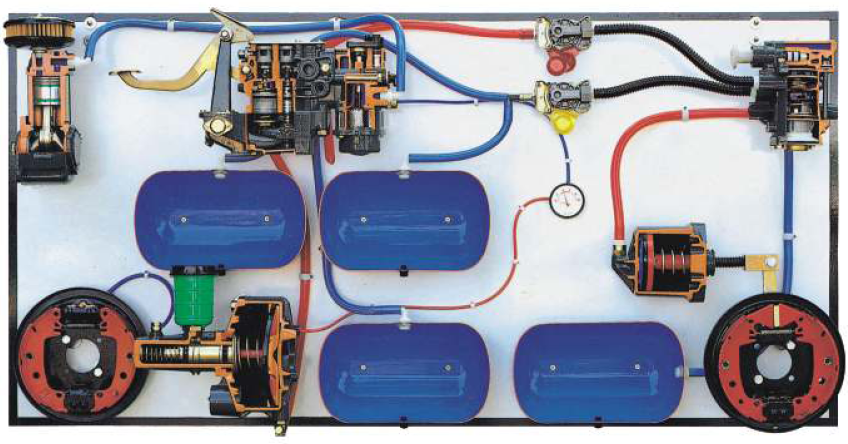

Sci-tech Hydraulic Pneumatic Braking System Model AM 011, shows elements of truck (tractor-trailer) complete with: air-compressor, triplex Marelli distributor, with adjusting and control unit, pressure brake booster, tractor trailer coupling joint, hydraulic control braking element, mechanical and air control braking element for parking braking, servo-distributor valve for the trailer, 4 nos. of reservoirs(3 for tractor). All elements are connected with rubber pipes of different colours to distinguish the various circuits.
Piston Air Compressor Complete with Valves
Marelli-Triplex Distribution
Assembly
Power-Assisted Pneumo – Hydraulic Brake
Complete Truck -Trailer Coupling
Automatically Re-loaded
Servo-Auto-Distributor for Braking
The Trailer
Three Compressed-Air Tanks
(2 on the Truck and 1 on the Trailer)
Two Shoe-And-Drum Braking Systems
(Hydraulically Controlled on the Truck,
Mechanically Controlled on the Trailer)
Wall Mount Model
Dimensions: 170x35x105 h. cms.
Weight: @ 60 kgs.
