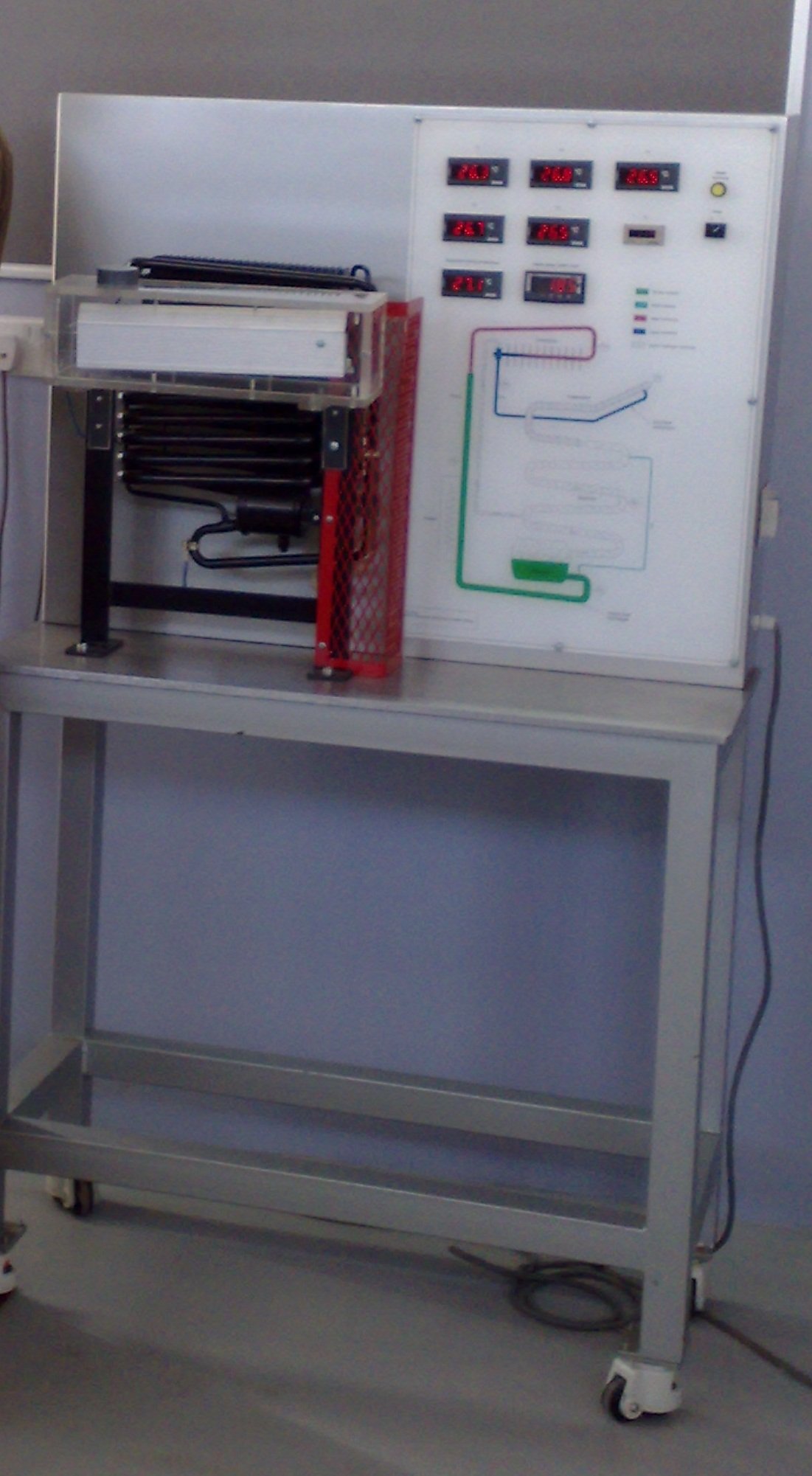

Absorption Refrigeration Trainer RAC 011
Sci-tech Absorption Refrigeration Training Model RAC 011 is based on basic absorption system designed with scale down module for training purpose. This module is designed to enable student to understand the theory and practice of absorption system.
The trainer consists of: mimic diagram, air cooler, NGV burner, solar panel, electric heater DC current type with step down transformer, pressure gauge on high side and low side, digital thermometer on high and low side, complete mimic diagram, switches and metal epoxy coated frame works. Floor standing type frame with brake type castor wheels.
Experiments List
– Complete system Energy balance.
– Operating procedure and parameter changing of absorption chiller system.
Provide easy understanding of:
- How absorption refrigeration works.
- Safety requirement of operating the system.
- Instrument measuring purpose of understanding the system operation
Dimension : 1300H X 1000L X 500W in mm.
Weight : @ 60kgs.
Scope of Delivery: Operation manual & experimental manual included
