1.5KW Steam Power Plant Model BSG 002

Study of power generation using steam boiler and performance of steam generator is

focus of this trainer. Sci-tech 1.5KW Steam Power Plant Model BSG 002, is designed the system in such fashion that enables students to investigate all the parameters governing the utilization & maintenance of a typical power plant. The system uses a small sized boiler unit that runs on LDO/gas. The generated steam is then used to run the steam turbine which in turn, runs the coupled A.C. Generator to produce the electricity or loading can be done by using Alternator & Bulb bank. A loading arrangement is also given for load test. The unit is fitted with a colored mimic diagram that illustrates the constructional and operational features. The various aspects of boiler and turbine operation and maintenance can be studied. Instrumentation is provided to measure Temperatures and Pressures. Temperature pressure characteristics of boiler can also be plotted.

Add to wishlist

SKU: 51366386de0e Categories: Boilers & SteamGens, Trainers

Description
Technical Specification

Study of power generation using steam boiler and performance of steam generator is focus of this trainer. Sci-tech 1.5KW Steam Power Plant Model BSG 002, is designed the system in such fashion that enables students to investigate all the parameters governing the utilization & maintenance of a typical power plant. The system uses a small sized boiler unit that runs on LDO/gas. The generated steam is then used to run the steam turbine which in turn, runs the coupled A.C. Generator to produce the electricity or loading can be done by using Alternator & Bulb bank. A loading arrangement is also given for load test. The unit is fitted with a colored mimic diagram that illustrates the constructional and operational features. The various aspects of boiler and turbine operation and maintenance can be studied. Instrumentation is provided to measure Temperatures and Pressures. Temperature pressure characteristics of boiler can also be plotted.

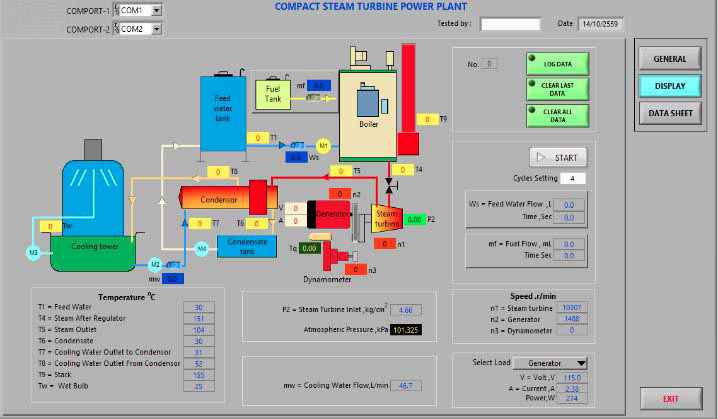

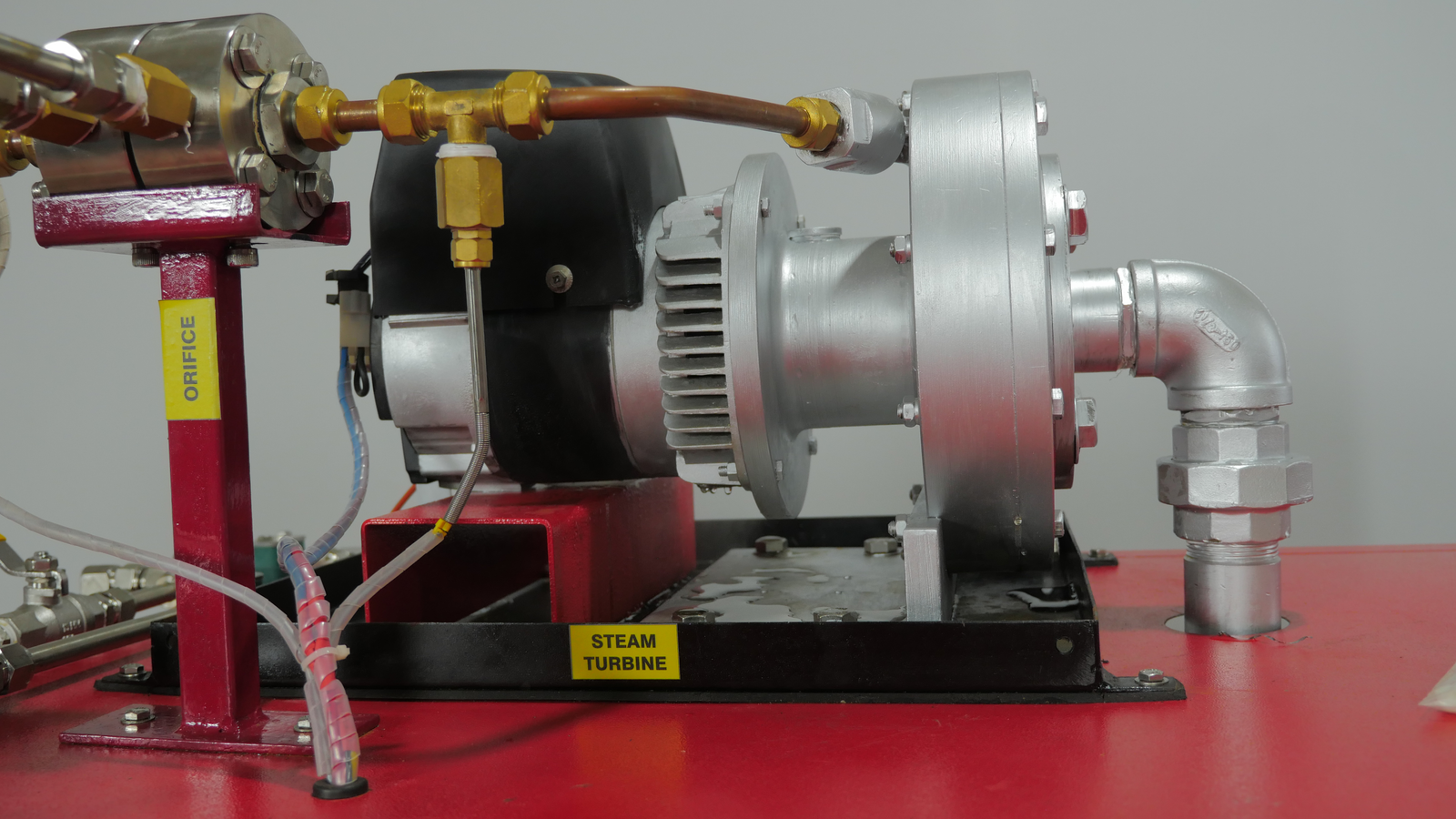

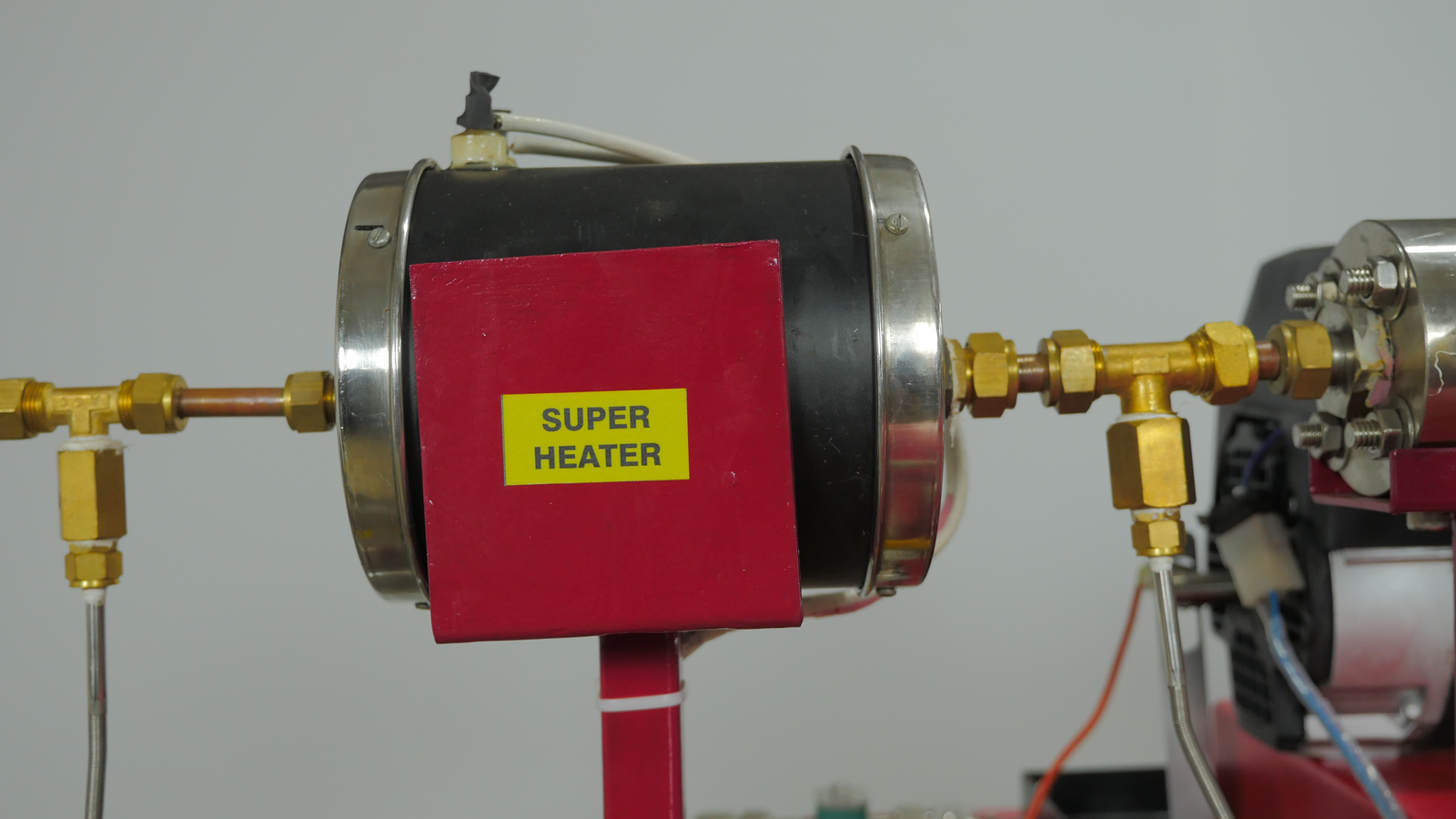

System Components  Boiler 200 Kg/Hr at 11 bar  Single-stage Steam turbine with Curtis wheel and hydraulic speed regulator: 1.5 KW @ 3000RPM Fuel consumption: 12L/h Heat-up time: 8min Max. pressure: 13bar Heater: power 24 KW (In case of Electrically fired Steam Generator)  Condenser Shell & Tube Type.  Pressure measurements: 3 x 0 to 16 bar; 2 x 0 to 4 bar; 1 x -1 to 1 bar  Chimney  Orifice meter  Control valve: Electric Solenoid Type  Pump Centrifugal pump: 2~3 HP capacity & Piston Reciprocating Pump.  Flow meter: Flow rate 0 to 160L/min (Cooling)  Water Softener (Optional)  Steam Calorimeter- Separating & Throttling calorimeter  Temperature Indicator: 12 channel input: K Type thermocouple  Fuel supply system: Volumetric Type capacity 50Liter  K Type Thermocouple temp. Sensor Temperature measurements: 12 x 50⁰ to 400⁰C; 1 x 0 to 100⁰C Torque measurement: 0 to 10 Nm  Digital Tachometer 0 -9999rpm.  Voltmeter 0-500 V.  Ammeter 0-10 Amp.  Loading arrangement- Electrical Alternator  Lamp Bank  Control panel  Cooling Tower (Optional)  Computerized Data Acquisition System OPTIONS:  Super Heater.  Blow Down Tank Sci-Cal^R Computer Control Software & Interface Sci-Cal^R software & hardware has been designed for use with more than 600 ‘Sci-tech’ trainers. Sci-Cal^R comes in a module that can be fitted or mounted on the Sci-tech trainers very easily. Sci-Cal^R box has 11 inches front HMI interactive panel, inside are i3 processor computer with it’s own hard drive & software processor with 16 to 32 analog and 16 to 32 digital signal data-loggers. The ‘LabVIEW’ processes the input signal with in-built data and formulae to tabulate results for the Sci-tech trainers. Sci-Cal^R box has HDMI output for connection to a projector or an electronic whiteboard or a monitor. Sci-Cal^R box has input ports for inputs from the Sci-tech trainer sensors. Sci-Cal^R eliminates requirement of external computer. Range Of Experiments
